Yacht-Boy 208

Yacht-Boy 208; Grundig Radio- (ID = 355811) Radio

Yacht-Boy 208; Grundig Radio- (ID = 355812) Radio

Yacht-Boy 208; Grundig Radio- (ID = 629852) Radio

Yacht-Boy 208; Grundig Radio- (ID = 629853) Radio

Yacht-Boy 208; Grundig Radio- (ID = 629854) Radio

Yacht-Boy 208; Grundig Radio- (ID = 629855) Radio

Yacht-Boy 208; Grundig Radio- (ID = 629856) Radio

Yacht-Boy 208; Grundig Radio- (ID = 629857) Radio
Yacht-Boy 208; Grundig Radio- (ID = 469661) Radio Yacht-Boy 208; Grundig Radio- (ID = 469666) Radio
Yacht-Boy 208; Grundig Radio- (ID = 416741) Radio Yacht-Boy 208; Grundig Radio- (ID = 416740) Radio
Yacht-Boy 208; Grundig Radio- (ID = 416742) Radio Yacht-Boy 208; Grundig Radio- (ID = 469662) Radio
Yacht-Boy 208; Grundig Radio- (ID = 469663) Radio Yacht-Boy 208; Grundig Radio- (ID = 469664) Radio
Yacht-Boy 208; Grundig Radio- (ID = 469665) Radio Yacht-Boy 208; Grundig Radio- (ID = 469667) Radio
Use red slider bar for more.

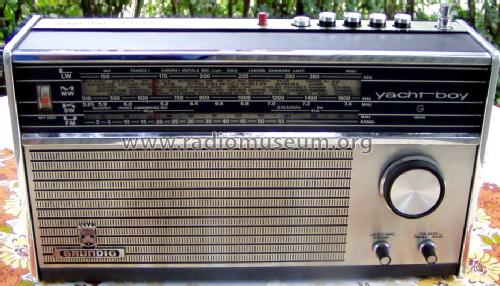

Yacht-Boy 208; Grundig Radio- (ID = 469661) Radio
Grundig Radio-: Yacht-Boy 208 [Radio] ID = 469661 933x534
Select picture or schematic to display from thumbnails on the right and click for download.
For model Yacht-Boy 208, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Thanks for Mr. Rosta György Hungary, Budapest! Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1968 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: BF184 BF184 BF184 BF185 BF185 BF185 BC109 2N3702 AC187 AC188
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Yacht-Boy 208 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 350 x 200 x 110 mm / 13.8 x 7.9 x 4.3 inch

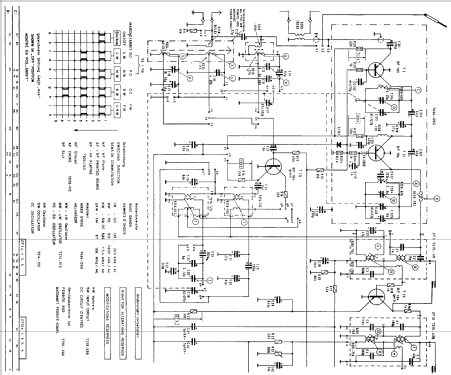

Literature/Schematics (1) -- Schematic

Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
