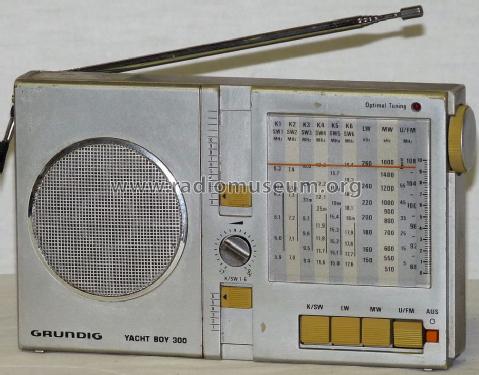

Yacht-Boy 300

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1981/1982

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75418

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture
• Schematics

Previous Next

Previous Next

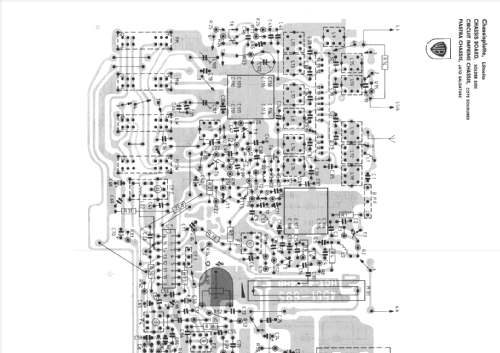

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / AA: 5 x 1.5 / DC 7.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Yacht-Boy 300 - Grundig Radio-Vertrieb, RVF,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 230 x 140 x 40 mm / 9.1 x 5.5 x 1.6 inch

• Notes

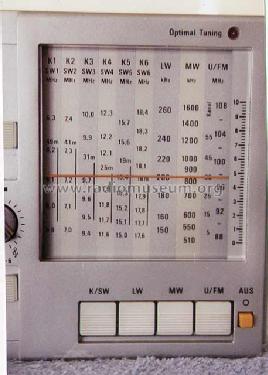

• Wave bands:

  • LW: ca.150-260 kHz
  • MW: ca 510-1600 kHz
  • KW/SW
    • K1/SW1: 5.9 - 6.3 MHz
    • K2/SW2: 7.0 - 7.4 MHz
    • K3/SW3: 9.4 - 10 MHz
    • K4/SW4: 11.6 - 12.3 MHz
    • K5/SW5: 15 - 15.75 MHz
    • K6/SW6: 17.6 - 18.4 MHz
  • U/FM: 87,5-108 MHz

  Made in Taiwan

• Net weight (2.2 lb = 1 kg)
• 0.7 kg / 1 lb 8.7 oz (1.542 lb)
