Yacht Boy 320

Yacht Boy 320; Grundig Radio- (ID = 2623278) Radio Yacht Boy 320; Grundig Radio- (ID = 2623279) Radio

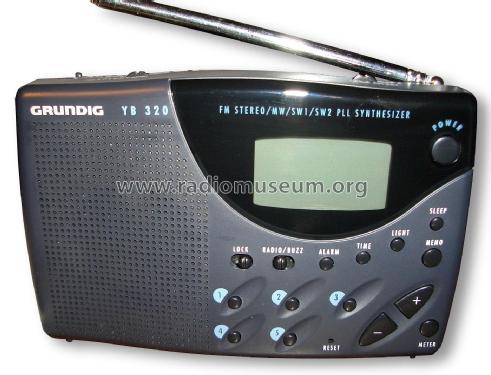

Yacht Boy 320; Grundig Radio- (ID = 1102426) Radio Yacht Boy 320; Grundig Radio- (ID = 1800249) Radio
Yacht Boy 320; Grundig Radio- (ID = 1800250) Radio Yacht Boy 320; Grundig Radio- (ID = 1800251) Radio

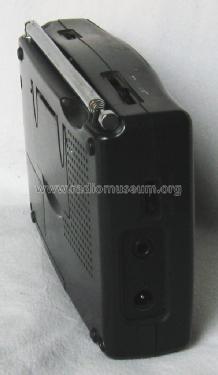

Yacht Boy 320; Grundig Radio- (ID = 2173634) Radio Yacht Boy 320; Grundig Radio- (ID = 2173635) Radio

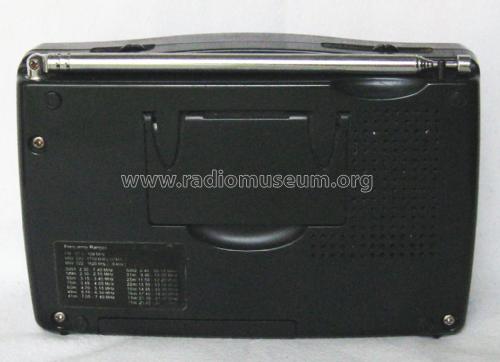

Yacht Boy 320; Grundig Radio- (ID = 2173636) Radio
Use red slider bar for more.
Yacht Boy 320; Grundig Radio- (ID = 2623278) Radio
Grundig Radio-: Yacht Boy 320 [Radio] ID = 2623278 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Yacht Boy 320, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1996 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Yacht Boy 320 - Grundig Radio-Vertrieb, RVF,
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 145 x 85 x 32 mm / 5.7 x 3.3 x 1.3 inch
Notes 3-Band Radio, PLL synthesizer, digital frequency display. AC-Adapter optional.
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Price in first year of sale 70.00 $
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
