Yacht Boy 400 YB400PE
Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1998 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 283440
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Grundig YB400PE front view

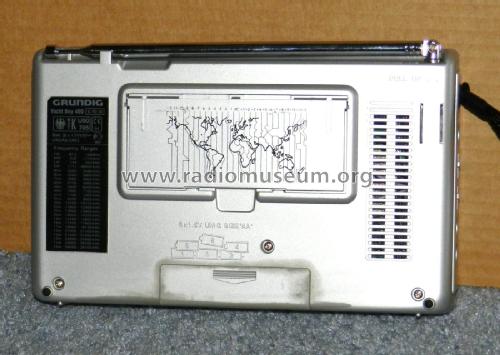

Grundig YB400PE rear view
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 110 -120 / AA: 6 x 1,5 / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.6 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Yacht Boy 400 YB400PE - Grundig Radio-Vertrieb, RVF,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 200 x 118 x 38 mm / 7.9 x 4.6 x 1.5 inch
- Notes
-
Frequency ranges:
FM: 87.5 - 108 MHz
MW: 520 - 1710 kHz
LW: 144 - 353 kHz
SW: 1711 - 30000 kHzSee also Grundig Yacht Boy 400, differences are not known yet.
- Price in first year of sale
- 199.99 USD
- Author
- Model page created by David Erali. See "Data change" for further contributors.
