Yacht Boy YB 208 ~2000er Modell

Grundig (Radio-Vertrieb, RVF, Radiowerke)

Data

Forum

Pictures

Country
Germany

Manufacturer / Brand
Grundig (Radio-Vertrieb, RVF, Radiowerke)

Year
1998

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
143870

- alternative name: Grundig Portugal || Grundig USA / Lextronix

Schematics

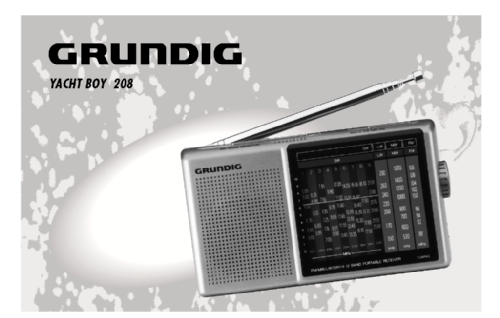

Yacht Boy YB 208; Grundig Radio- (ID = 2360856) Radio — Grundig Radio- Yacht Boy YB 208 (3)

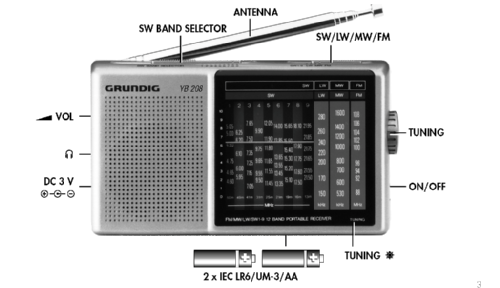

Yacht Boy YB 208; Grundig Radio- (ID = 2360857) Radio — Grundig Radio- Yacht Boy YB 208 (3)

Yacht Boy YB 208; Grundig Radio- (ID = 2360860) Radio — Grundig Radio- Yacht Boy YB 208 (3)

Yacht Boy YB 208; Grundig Radio- (ID = 2360862) Radio — Grundig Radio- Yacht Boy YB 208 (3)

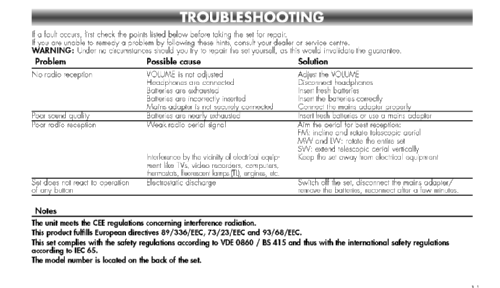

Yacht Boy YB 208; Grundig Radio- (ID = 2360863) Radio — Grundig Radio- Yacht Boy YB 208 (3)

Yacht Boy YB 208; Grundig Radio- (ID = 2360864) Radio — Grundig Radio- Yacht Boy YB 208 (3)

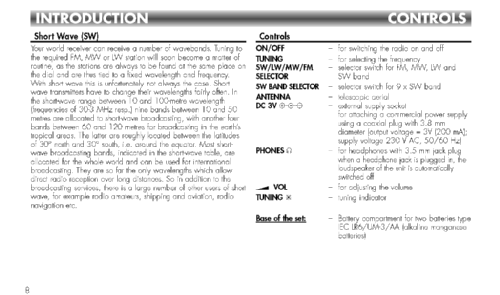

Yacht Boy YB 208; Grundig Radio- (ID = 2360865) Radio — Grundig Radio- Yacht Boy YB 208 (3)

Yacht Boy YB 208; Grundig Radio- (ID = 2062709) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 2062710) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 2062713) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 2062711) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 815432) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 815982) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 815434) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 815433) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 815435) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 815983) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 1049568) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 1049569) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 1049570) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 1049571) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 1049792) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 1049793) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 1049795) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 1049796) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 2361004) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 2361005) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 2361006) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 2361007) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 2361008) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 2361009) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 2361010) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 2635746) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Yacht Boy YB 208; Grundig Radio- (ID = 2635747) Radio — Grundig Radio- Yacht Boy YB 208 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Superheterodyne (common); ZF/IF 460/10700 kHz

Wave bands
Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

Power type and voltage
Batteries / addl. power jack / 2 × 1,5 / 3 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Power out
0.12 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Yacht Boy YB 208 [~2000er Modell] - Grundig Radio-Vertrieb, RVF,

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
135 x 75 x 25 mm / 5.3 x 3 x 1 inch

Notes
Grundig Yacht Boy 208 (YB 208) FM-MW-LW-SW Portable Receiver;
Preiswertes Fernost Analoggerät, 9 KW Bänder:
LW 148,5 - 283,5 kHz,
MW 526.5 - 1606.5 kHz,
KW-SW1: 4.60 - 5.04 MHz (60m Band),
KW-SW2: 5.95 - 6.25 MHz (49m Band),
KW-SW3: 7.05 - 7.70 MHz (41m Band),
KW-SW4: 9.40 - 9.90 MHz (31m Band),
KW-SW5: 11.55 - 12.10 MHz (25m Band),
KW-SW6: 13.45 - 14.10 MHz (21m Band),
KW-SW7: 15.05 - 15.63 MHz (19m Band),
KW-SW8: 17.50 - 18.05 MHz (16m Band),
KW-SW9: 21.50 - 21.95 MHz (13m Band),
UKW-FM: 87.5 - 108.0 MHz,
Betrieb auch mit ext. 3 VDC Netzadapter, Kopfhöreranschluß, passende Tragtasche wurde mitgeliefert.

Source of data
-- Collector info (Sammler)

Mentioned in
-- Original prospect or advert

Author
Model page created by a member from A. See "Data change" for further contributors.
