• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1963/1964

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 108343

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

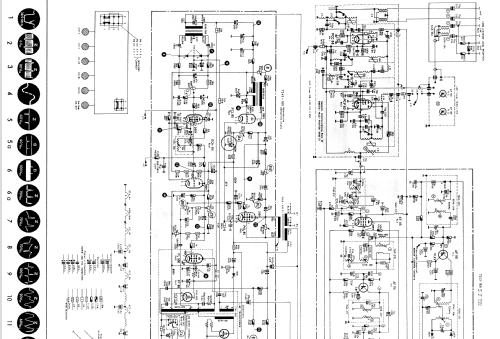

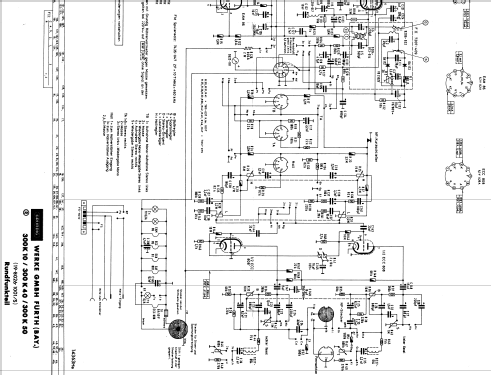

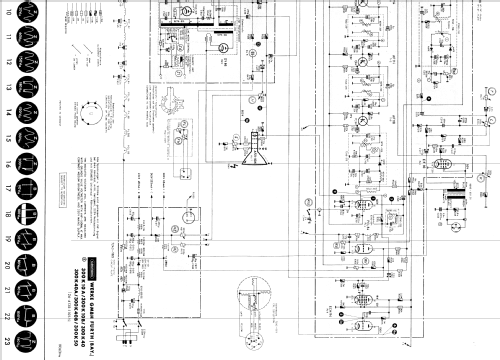

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Radio Control (+Remote Wire etc)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Zauberspiegel 300K10 wie TV T320 Rfk Ch= HF20 + NF1 [Altdeutsch] - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 790 x 1040 x 470 mm / 31.1 x 40.9 x 18.5 inch

• Notes
• Fernseh-Chassis = Zauberspiegel T320, jedoch ohne Ton-Endstufe; Rundfunk-Chassis = HF20 und NF1; Stereodecoder 4 oder 5 nachrüstbar; Phono-Chassis = Dual 1008.

• Net weight (2.2 lb = 1 kg)
• 75 kg / 165 lb 3.2 oz (165.198 lb)

• Price in first year of sale
• 3,025.00 DM

• Source of data
• Handbuch VDRG 1963/1964

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
