• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1964/1965

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 109926

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

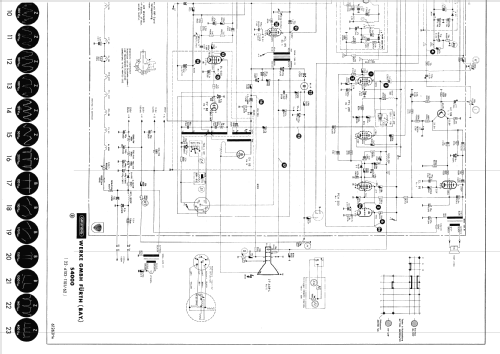

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 27ADP4

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Radio Control (+Remote Wire etc)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Zauberspiegel S4000 - Grundig Radio-Vertrieb, RVF,

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 790 x 990 x 440 mm / 31.1 x 39 x 17.3 inch

• Notes
• VHF/UHF. Technische Daten wie Zauberspiegel T400, jedoch Schrank mit abschließbaren Falttüren und 69-cm-Bildröhre (im VDRG-Katalog fälschlicher Weise mit 27ADP bezeichnet).

• Net weight (2.2 lb = 1 kg)
• 55 kg / 121 lb 2.3 oz (121.145 lb)

• Price in first year of sale
• 1,950.00 DM

• Source of data
• Handbuch VDRG 1964/1965

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
