• Country
• Austria

• Manufacturer / Brand
• Grundig Austria GmbH; Wien

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 205887

• Number of Transistors
• 5

• Semiconductors
• TBA800

• Main principle
• TRF with diode detector

• Wave bands
• Long Wave and/or Very Low Frequency (VLF).

• Details
• Wired Wireless Receiver (RF!)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

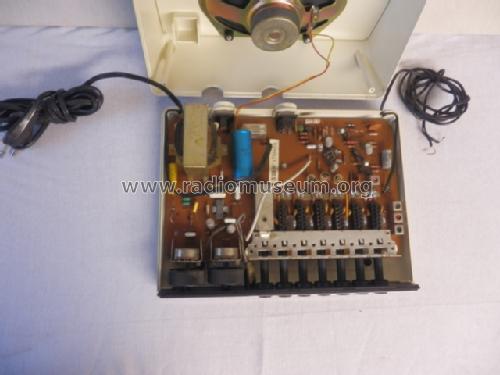

• Model: Ricevitore per Filodiffusione FD1000 - Grundig Austria GmbH; Wien

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 270 x 100 x 200 mm / 10.6 x 3.9 x 7.9 inch

• Notes
• Grundig FD1000, Ricevitore per Filodiffusione;
  Commutatore a 6 canali, frequenze:
  1= 178 kHz, 2= 211 kHz, 3= 244 kHz,
  4= 277 kHz, 5= 310 kHz, 6= 343 kHz,
  trasmessi con linea telefonica in AM.

• Author
• Model page created by Pasquale Baiocato. See "Data change" for further contributors.
