Telepilot TP 710 1 Transistor

Telepilot TP 710; Grundig Austria GmbH (ID = 1633906) Misc

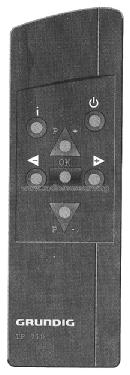

Telepilot TP 710; Grundig Austria GmbH (ID = 1804650) Misc Telepilot TP 710; Grundig Austria GmbH (ID = 1633553) Misc

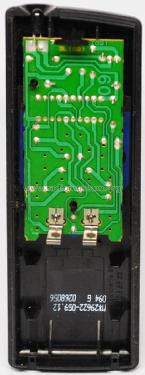

Telepilot TP 710; Grundig Austria GmbH (ID = 1804651) Misc Telepilot TP 710; Grundig Austria GmbH (ID = 1804652) Misc
Telepilot TP 710; Grundig Austria GmbH (ID = 1804653) Misc
Use red slider bar for more.

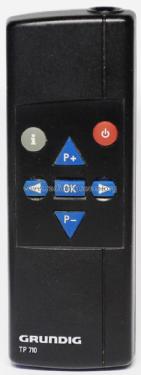

Telepilot TP 710; Grundig Austria GmbH (ID = 1804650) Misc
Grundig Austria GmbH: Telepilot TP 710 [Misc] ID = 1804650 452x1200
Select picture or schematic to display from thumbnails on the right and click for download.
For model Telepilot TP 710 1 Transistor, Grundig Austria GmbH; Wien

Country:  Austria
Manufacturer / Brand:  Grundig Austria GmbH; Wien
Year: 1990 ?? Category: Miscellaneous (Other, Various) - see notes
Semiconductors (the count is only for transistors) 1: BC875
Wave bands - without
Details Radio Control (+Remote Wire etc)
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Telepilot TP 710 [1 Transistor] - Grundig Austria GmbH; Wien
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 50 x 140 x 20 mm / 2 x 5.5 x 0.8 inch
Notes

Infrarot-Fernbedienung Modell TP 710, mit einem Transistor und einem IC, für Grundig Color-TV.

Siehe auch TP-710 mit 4 Transistoren.

Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Mentioned in -- Schematic

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
