Mayflower 2 RV20

Mayflower 2 RV20; Hacker Radio Ltd., (ID = 141332) Radio

Mayflower 2 RV20; Hacker Radio Ltd., (ID = 141327) Radio

Mayflower 2 RV20; Hacker Radio Ltd., (ID = 141328) Radio

Mayflower 2 RV20; Hacker Radio Ltd., (ID = 141330) Radio

Mayflower 2 RV20; Hacker Radio Ltd., (ID = 141331) Radio

Mayflower 2 RV20; Hacker Radio Ltd., (ID = 141317) Radio

Mayflower 2 RV20; Hacker Radio Ltd., (ID = 141318) Radio

Mayflower 2 RV20; Hacker Radio Ltd., (ID = 141319) Radio

Mayflower 2 RV20; Hacker Radio Ltd., (ID = 141320) Radio

Mayflower 2 RV20; Hacker Radio Ltd., (ID = 141322) Radio
Mayflower 2 RV20; Hacker Radio Ltd., (ID = 2304414) Radio Mayflower 2 RV20; Hacker Radio Ltd., (ID = 2304419) Radio
Mayflower 2 RV20; Hacker Radio Ltd., (ID = 2304415) Radio Mayflower 2 RV20; Hacker Radio Ltd., (ID = 2304416) Radio
Mayflower 2 RV20; Hacker Radio Ltd., (ID = 141313) Radio Mayflower 2 RV20; Hacker Radio Ltd., (ID = 550936) Radio
Mayflower 2 RV20; Hacker Radio Ltd., (ID = 550939) Radio Mayflower 2 RV20; Hacker Radio Ltd., (ID = 141315) Radio
Mayflower 2 RV20; Hacker Radio Ltd., (ID = 550930) Radio Mayflower 2 RV20; Hacker Radio Ltd., (ID = 1734888) Radio
Use red slider bar for more.
Mayflower 2 RV20; Hacker Radio Ltd., (ID = 2304414) Radio
Hacker Radio Ltd.,: Mayflower 2 RV20 [Radio] ID = 2304414 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mayflower 2 RV20, Hacker Radio Ltd., Maidenhead:
Front of my Hacker Mayflower 2

Country:  Great Britain (UK)
Manufacturer / Brand:  Hacker Radio Ltd., Maidenhead
Year: 1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 EF89 EF80 EF80 EM84 EB91 ECL86 ECL86
Main principle Superheterodyne (common); ZF/IF 10700 kHz
Tuned circuits 11 FM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 10 inch = 25.4 cm
Power out 6.5 W (unknown quality)
from Radiomuseum.org Model: Mayflower 2 RV20 - Hacker Radio Ltd., Maidenhead
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 460 x 300 x 200 mm / 18.1 x 11.8 x 7.9 inch
Notes High quality, high sensitivity FM only table model with large 10 x 6in speaker and push-pull output. Painted chassis. Volume and tuning controls on side of cabinet. Tone, AFC and sensitivity controls on back. Selenium rectifier.
Net weight (2.2 lb = 1 kg) 8.6 kg / 18 lb 15.1 oz (18.943 lb)

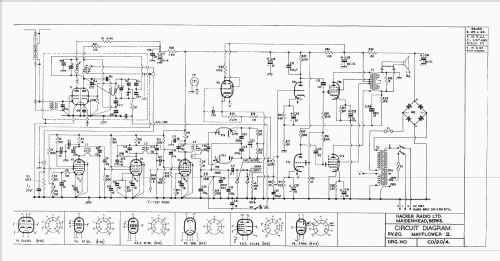

Literature/Schematics (1) -- Original-techn. papers.

Model page created by William J Blanchflower. See "Data change" for further contributors.



All listed radios etc. from Hacker Radio Ltd., Maidenhead
Here you find 47 models, 47 with images and 23 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Hacker Radio Ltd.,: Mayflower 2 RV20
Threads: 1 | Posts: 5
Hits: 2486     Replies: 4
hacker: RV20; Mayflower 2 - a Rebuild
Graham GUY
01.Jul.11
  1

To any RMorg Hacker Radio Enthusiasts,

I don`t know if anyone amongst the RMorg membership is also a member of the Hacker Group forum as I am, but if anyone is contemplating any major work on one of these truly brilliant valve radios, I did an article on the total re-build from chassis up, and sent the photographs to the Hacker Group.

There is a downside, even if not a major one, if anyone would like access to these photographs - you need to join the Hacker  Group, as these are only available to members.

On accessing, because of the security, you will be requested to join the Hacker Group as I said.

There are 20 photographs in total, and show the errors I made when trying to refurbish the wooden case, as well as details which I didn`t cock-up, like capacitor replacement.

 You should note that in the last photo` there appears to be a gun under the table in my total mess of a conservatory where the rebuild took place - as a form of explanation, this was only an air rifle which I was simultaneously servicing!

For any American readers of this article, the Hacker Group has recently been in contact with the Grundig Radio Group in the US, where these Grundig enthusiasts have just come across the Hacker radios, and there is cooperation between the two Groups over introducing themselves to one another.

regards

graham guy

Graham GUY
01.Jul.11
  2

Please note that I tried to add links to the original article, but despite numerous attempts, failed miserably.

Perhaps someone who knows how to do these things, and has the time to be bothered and thinks it worthwhile, could add the links to both the Hacker Group Forum website, and the actual photo` file itself.

My thanks in advance for this: I promise to try to find out how to do this myself in the future if I need to - I tried the FAQ info article by the way, but failed at that too!



graham

Howard Craven
01.Jul.11
  3



Hello Graham,

I'm a member of the group, you will find several pics of my sets posted there.

Hacker radios aren't well known outside of the UK, which is a shame as they are almost certainly the best quality transistor radios built here and the Mayflower model one of the best FM valve sets.

I can't work out how to post links on here either but you could post a pic of your restored set on the Mayflower RV20 model page.

Regards ......... Howard



Graham GUY
01.Jul.11
  4

Good Afternoon Howard,

                                   And thanks for your reply; I have indeed already looked at all of your impressive radio collection - you certainly seem to know your stuff as well, even if we share the lack of ability with adding links.
I don`t really see the point however of adding my own Mayflower to the model page as it will just demonstrate my lack of ability when it comes to woodwork refurbishment: Bakelite I`m ok with, but woodwork surfaces I just seem to make worse. The only thing I ever found out about woodwork surfaces & their improvement was the use of walnuts in obtaining a protective shine, but the Mayflower needed a bit more than that, and a bit more than I was capable of at the time, and I am no better now.

The point of mentioning the re-build was that it demonstrates to those with minimum radio knowledge like myself,  but with an ability to follow a diagram & solder, that a rebuild of something that started out as well built as the Mayflower, is a perfectly viable possibility.



regard

graham

Mark Hennessy
16.Jul.11
  5

Hello Graham and Howard,

I can only agree; these are lovely sounding sets, but also a doddle to work on. I'm not really a "valve person", but starting with these sets has really boosted my confidence. It's just a shame that most other manufacturers fail to use such neat tagstrips :-)

I've only just joined up here, but it's nice to see some familiar faces!

All the best,

Mark


Hacker Radio Ltd.,: Mayflower 2 RV20
End of forum contributions about this model
