Sovereign II (2) RP25

Sovereign II RP25; Hacker Radio Ltd., (ID = 436461) Radio

Sovereign II RP25; Hacker Radio Ltd., (ID = 436462) Radio

Sovereign II RP25; Hacker Radio Ltd., (ID = 436463) Radio

Sovereign II RP25; Hacker Radio Ltd., (ID = 436459) Radio

Sovereign II RP25; Hacker Radio Ltd., (ID = 436460) Radio

Sovereign II RP25; Hacker Radio Ltd., (ID = 435640) Radio

Sovereign II RP25; Hacker Radio Ltd., (ID = 435641) Radio

Sovereign II RP25; Hacker Radio Ltd., (ID = 435644) Radio

Sovereign II RP25; Hacker Radio Ltd., (ID = 435647) Radio

Sovereign II RP25; Hacker Radio Ltd., (ID = 435649) Radio
Sovereign II RP25; Hacker Radio Ltd., (ID = 2511817) Radio Sovereign II RP25; Hacker Radio Ltd., (ID = 2511823) Radio
Sovereign II RP25; Hacker Radio Ltd., (ID = 2511818) Radio Sovereign II RP25; Hacker Radio Ltd., (ID = 2511819) Radio
Sovereign II RP25; Hacker Radio Ltd., (ID = 2511820) Radio Sovereign II RP25; Hacker Radio Ltd., (ID = 2511821) Radio
Sovereign II RP25; Hacker Radio Ltd., (ID = 2511822) Radio Sovereign II RP25; Hacker Radio Ltd., (ID = 178509) Radio
Sovereign II RP25; Hacker Radio Ltd., (ID = 216003) Radio Sovereign II RP25; Hacker Radio Ltd., (ID = 410055) Radio
Use red slider bar for more.
Sovereign II RP25; Hacker Radio Ltd., (ID = 2511817) Radio
Hacker Radio Ltd.,: Sovereign II RP25 [Radio] ID = 2511817 1181x914
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sovereign II (2) RP25, Hacker Radio Ltd., Maidenhead

Country:  Great Britain (UK)
Manufacturer / Brand:  Hacker Radio Ltd., Maidenhead
Year: 1967–1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 17: BF195 BF195 BF194 BF194 BF194 BC108 BF194 AF117 AF117 AF117 AF117 BC108 BC108 OC71 AC128 AC128 AC176
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 2 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 8 inch = 20.3 cm
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Sovereign II RP25 - Hacker Radio Ltd., Maidenhead
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 12.75 x 10 x 4.75 inch / 324 x 254 x 121 mm
Notes Separate AM and FM sections.
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)

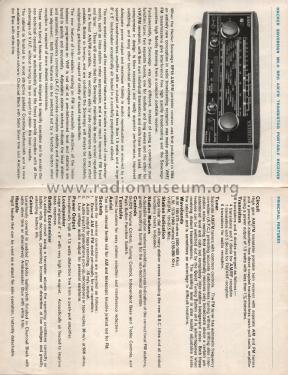

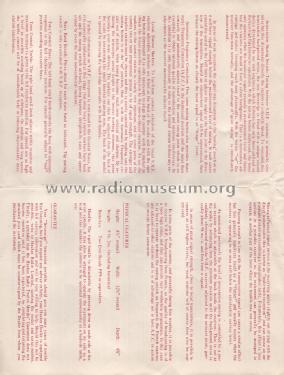

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Howard Craven. See "Data change" for further contributors.



All listed radios etc. from Hacker Radio Ltd., Maidenhead
Here you find 51 models, 51 with images and 23 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
