HT-6

HT-6; Hallicrafters, The; (ID = 473395) Commercial Tr HT-6; Hallicrafters, The; (ID = 1408577) Commercial Tr
Use red slider bar for more.
HT-6; Hallicrafters, The; (ID = 473395) Commercial Tr

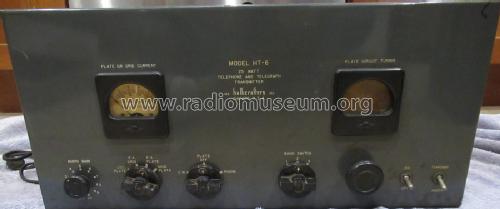

Hallicrafters, The;: HT-6 [Commercial Tr] ID = 473395 933x565
Select picture or schematic to display from thumbnails on the right and click for download.
For model HT-6, Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Country:  United States of America (USA)
Manufacturer / Brand:  Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
Year: 1939–1945 Category: Commercial Transmitter (TX not Transceiver)
Valves / Tubes 8: 6SQ7 6L6 6SC7 6L6 6L6 807 5Z3 5Z3
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: HT-6 - Hallicrafters, The; Chicago,
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 20 x 9 x 15 inch / 508 x 229 x 381 mm
Notes Coverage: 160-6 meters, 25 watts AM/CW.
Price in first year of sale 99.00 $
Source of data Radios by hallicrafters
Mentioned in Radio Shack Catalog (1940, p.5)

Model page created by a member from D. See "Data change" for further contributors.
