• Year
  • 1944
  • Category
  • Military Receiver
  • Radiomuseum.org ID
  • 86462

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 17
  • Main principle
  • Superhet, double/triple conversion; ZF/IF 32500-47500 kHz; 2 AF stage(s)
  • Wave bands
  • FM Broadcast Band Only
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
  • Material
  • Metal case
  • from Radiomuseum.org

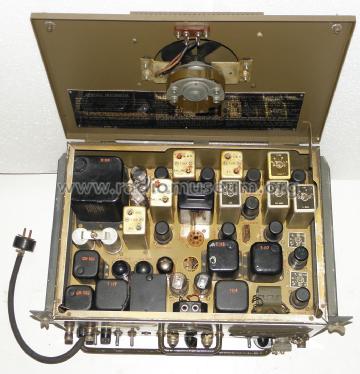

  • Model: FM Radio Receiver R-19/TRC-1 - Hallicrafters, The; Chicago,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 480 x 200 x 310 mm / 18.9 x 7.9 x 12.2 inch
  • Notes
  • Crystal controlled single frequency FM-receiver, frequency range from 70 - 100 MHz, features squelch, antenna trimmer, multi function meter, built in speaker and remote control capabilities.

    1. IF = 32,5 - 47,5 MHz, 2. IF = 5,0 MHz

  • Net weight (2.2 lb = 1 kg)
  • 43 lb (43 lb 0 oz) / 19.522 kg
  • Mentioned in
  • -- Original-techn. papers. (Technical Manual TM11-2601)
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
