Sky Champion S-20R

ID = 18687

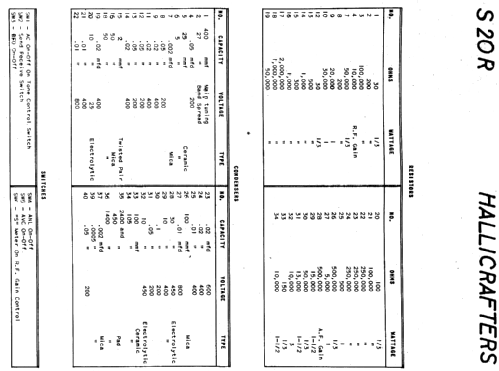

Sky Champion S-20R; Hallicrafters, The; (ID = 18375) Amateur-R

Sky Champion S-20R; Hallicrafters, The; (ID = 872204) Amateur-R

{gbW: "729", gbH: "451", mW: "500", mH: "309.0", kb: "21 KB", notes: "For model Sky Champion S-20R, Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX:[br]Ebay Nr. 300041190203 Bild bearbeitet.", title: "Hallicrafters, The; Sky Champion S-20R uploaded by Hinrich Grensemann † 15.5.16 (2)", ite: "2"} {gbW: "685", gbH: "516", mW: "497.0", mH: "375", kb: "22 KB", notes: "For model Sky Champion S-20R, Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX:[br]Ebay Nr. 300041190203 Bild bearbeitet.", title: "Hallicrafters, The; Sky Champion S-20R uploaded by Hinrich Grensemann † 15.5.16 (2)", ite: "2"} {gbW: "634", gbH: "370", mW: "500", mH: "291.0", kb: "26 KB", notes: "For model Sky Champion S-20R, Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX:[br]Q = ebay objnr : 320059797263", title: "Hallicrafters, The; Sky Champion S-20R uploaded by Hugo Sneyers (2)", ite: "2"} {gbW: "639", gbH: "408", mW: "500", mH: "319.0", kb: "32 KB", notes: "For model Sky Champion S-20R, Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX:[br]Q = ebay objnr : 320059797263", title: "Hallicrafters, The; Sky Champion S-20R uploaded by Hugo Sneyers (2)", ite: "2"} {gbW: "557", gbH: "474", mW: "440.0", mH: "375", kb: "30 KB", notes: "For model Sky Champion S-20R, Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX:[br]Q = ebay objnr : 320059797263", title: "Hallicrafters, The; Sky Champion S-20R uploaded by Hugo Sneyers (2)", ite: "2"} {gbW: "529", gbH: "253", mW: "500", mH: "239.0", kb: "44 KB", notes: "For model Sky Champion S-20R, Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX", title: "Hallicrafters, The; Sky Champion S-20R uploaded by Mario Coelho (2)", ite: "2"} {gbW: "599", gbH: "305", mW: "500", mH: "254.0", kb: "66 KB", notes: "For model Sky Champion S-20R, Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX", title: "Hallicrafters, The; Sky Champion S-20R from Jürgen Bauch (1)", ite: "1"} {gbW: "600", gbH: "294", mW: "500", mH: "245.0", kb: "110 KB", notes: "For model Sky Champion S-20R, Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX", title: "Hallicrafters, The; Sky Champion S-20R from Jürgen Bauch (1)", ite: "1"} {gbW: "599", gbH: "291", mW: "500", mH: "242.0", kb: "75 KB", notes: "For model Sky Champion S-20R, Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX", title: "Hallicrafters, The; Sky Champion S-20R from Jürgen Bauch (1)", ite: "1"} {gbW: "933", gbH: "466", mW: "500", mH: "249.0", kb: "63 KB", notes: "For model Sky Champion S-20R, Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX", title: "Hallicrafters, The; Sky Champion S-20R from Mark Saltzman (1)", ite: "1"}

Sky Champion S-20R; Hallicrafters, The; (ID = 265655) Amateur-R

Sky Champion S-20R; Hallicrafters, The; (ID = 295673) Amateur-R

Next pictures

Use red slider bar for more.

Sky Champion S-20R; Hallicrafters, The; (ID = 265654) Amateur-R

Hallicrafters, The;: Sky Champion S-20R [Amateur-R] ID = 265654 729x451

Select picture or schematic to display from thumbnails on the right and click for download.

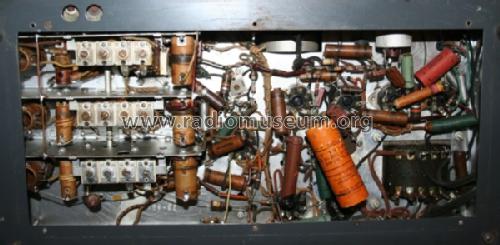

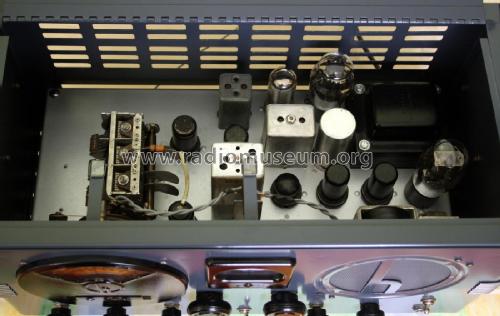

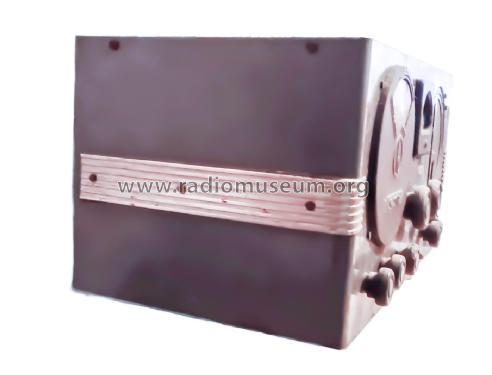

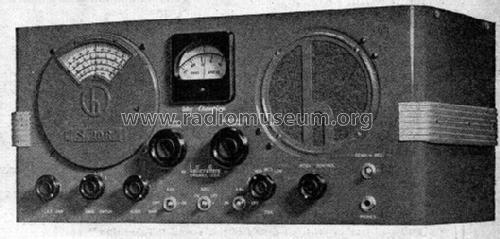

For model Sky Champion S-20R, Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX:
Ebay Nr. 300041190203 Bild bearbeitet.

Country:

United States of America (USA)

Manufacturer / Brand:

Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Year: 1939–1945

Category: Amateur-Receiver (amateur bands, may include broadcast bands)

Valves / Tubes

9: 6SK7 6K8 6SK7 6SK7 6H6 6J5GT 6SQ7 6F6G 80

Main principle	Superhet with RF-stage; ZF/IF 455 kHz
Tuned circuits	9 AM circuit(s)
Wave bands	Broadcast, Short Wave(s) and Police.
Details
Power type and voltage	Alternating Current supply (AC) / 117 Volt
Loudspeaker	Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out	3 W (unknown quality)
from Radiomuseum.org	Model: Sky Champion S-20R - Hallicrafters, The; Chicago,
Material	Metal case
Shape	Boatanchor (heavy military or commercial set).
Dimensions (WHD)	470 x 215 x 240 mm / 18.5 x 8.5 x 9.4 inch
Notes	Coverage: 0.540-1.77, 1.72-5.4, 5.3-15.7, 15.2-44MHz, AM/CW, 50 Ohms Antenna Input
Net weight (2.2 lb = 1 kg)	11.5 kg / 25 lb 5.3 oz (25.33 lb)
Price in first year of sale	50.00 $
Collectors' prices
External source of data	E. Erb 3-907007-36-0
Source of data	Communications Receivers

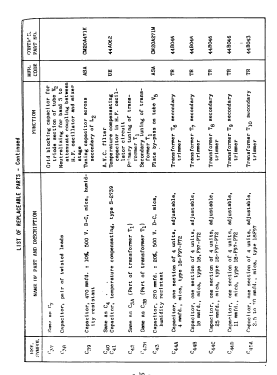

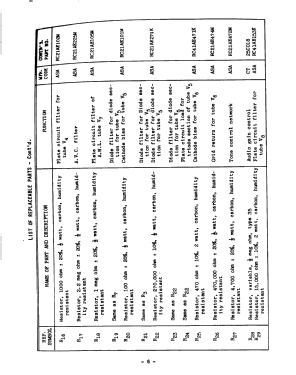

Circuit diagram reference	Rider's Perpetual, Volume 11 = ca. 1940 and before
