SX-101A

SX-101A; Hallicrafters, The; (ID = 554005) Amateur-R

SX-101A; Hallicrafters, The; (ID = 554006) Amateur-R

SX-101A; Hallicrafters, The; (ID = 554007) Amateur-R

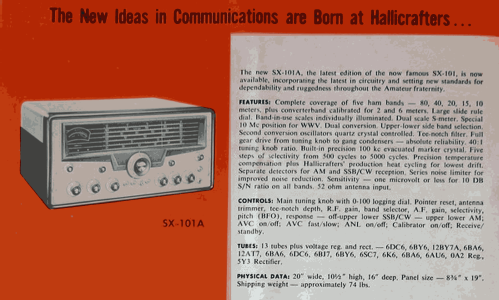

SX-101A; Hallicrafters, The; (ID = 2080946) Amateur-R
SX-101A; Hallicrafters, The; (ID = 2344448) Amateur-R SX-101A; Hallicrafters, The; (ID = 168076) Amateur-R
SX-101A; Hallicrafters, The; (ID = 1265879) Amateur-R SX-101A; Hallicrafters, The; (ID = 1265880) Amateur-R
SX-101A; Hallicrafters, The; (ID = 1265881) Amateur-R
Use red slider bar for more.
SX-101A; Hallicrafters, The; (ID = 2344448) Amateur-R
Hallicrafters, The;: SX-101A [Amateur-R] ID = 2344448 1400x844
Select picture or schematic to display from thumbnails on the right and click for download.
For model SX-101A, Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX:
Sammlung: "Das Rundfunkmuseum" in Cham

Country:  United States of America (USA)
Manufacturer / Brand:  Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
Year: 1959–1963 Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Valves / Tubes 14: 6DC6 6BY6 12BY7A 6BA6 6BA6 12AT7 6DC6 6BJ7 6BY6 6SC7 6K6 6BA6 6AU6 0A2 5Y3
Main principle Superhet, double/triple conversion; ZF/IF 1650 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker - For headphones or amp.
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: SX-101A - Hallicrafters, The; Chicago,
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 508 x 406 x 267 mm / 20 x 16 x 10.5 inch
Notes Coverage: 3.5-4, 7-7.3, 14-14.4, 21-21.5, 28-29.7MHz and 10MHz WWV, 160 and 11 meters have been dropped, 50.75 L/C Filter, 2nd IF 50.75KHz, provision is made for operation on the 6 and 2 meter bands with an outboard converter, all other features are the same as the SX-101
Net weight (2.2 lb = 1 kg) 31.7 kg / 69 lb 13.2 oz (69.824 lb)
Price in first year of sale 400.00 $
Source of data Communications Receivers
Mentioned in Radios by hallicrafters (Shortwave Receivers Past & pres.)

Model page created by a member from D. See "Data change" for further contributors.



All listed radios etc. from Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
Here you find 816 models, 431 with images and 387 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Hallicrafters, The;: SX-101A
Threads: 1 | Posts: 1
Hits: 1523     Replies: 0
hallicraft: SX-101A (SX101A);
Heribert Jung
21.Jan.09
  1

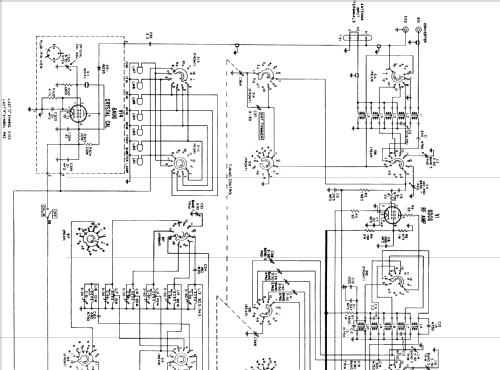

Schema is part of the manual to find at BAMA.
