• Country
• Canada

• Manufacturer / Brand
• Hallicrafters Canada Ltd., The; Toronto, ON

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 289468

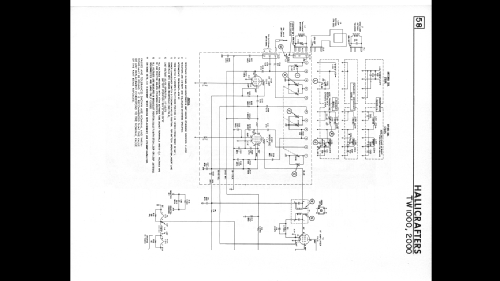

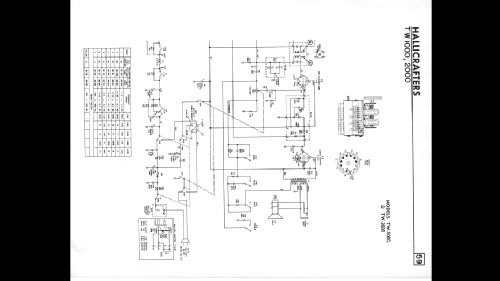

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1U4 1L6 1U4 1U5 3V4

• Number of Transistors
• 1

• Semiconductors

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• 105-120 AC/DC or 230 AC/DC with ballast adapter or 9 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 7 inch = 17.8 cm

• Power out
• 0.24 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: TW-2000 - Hallicrafters Canada Ltd., The

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 430 x 300 x 200 mm / 16.9 x 11.8 x 7.9 inch

• Notes

•  This is an 8 band portable or line operated radio. Band coverage is as follows:

  Band	kHz
  1	1800-3900
  2	14620-15700
  3	17320-18200
  4	9220-10300
  5	3900-8000
  6	11420-12300
  7	540-1600
  LW	180-400

  Selenium rectifier.

  Same as Halicrafters USA model TW-2000.

• Net weight (2.2 lb = 1 kg)
• 7.8 kg / 17 lb 2.9 oz (17.181 lb)

• Literature/Schematics (1)
• Radio College of Canada (RCC)

• Author
• Model page created by Jean Marcotte. See "Data change" for further contributors.
