106 Bullet
Use red slider bar for more.
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
|
|
Year:
1937
|
Category: Broadcast Receiver - or past WW2 Tuner |
| Valves / Tubes |
7:
6A7 6D6 76 6F5 6G5 41 80
|
| Main principle |
Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
|
| Tuned circuits |
6 AM circuit(s) |
| Wave bands |
Broadcast and Short Wave (SW). |
| Details |
|
| Power type and voltage |
Alternating Current supply (AC) / 115 Volt |
| Loudspeaker |
Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
| Power out |
|
| from Radiomuseum.org |
Model: 106 Bullet - Halson Radio Mfg. Co.; New |
| Material |
Wooden case |
| Shape |
Tablemodel without push buttons, Mantel/Midget/Compact up to 14 |
| Notes |
BC (545-1750 kHz) and SW (5.75-19.0 MHz) bands. Tuning eye. |
| External source of data |
Ernst Erb |
| Source of data |
The Radio Collector's Directory and Price Guide 1921 - 1965 |
| Circuit diagram reference |

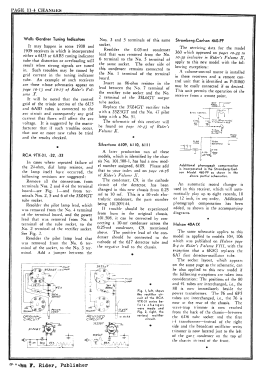

Rider's Perpetual, Volume 8 = 1937 and before |
| Mentioned in |
Machine Age to Jet Age III |
