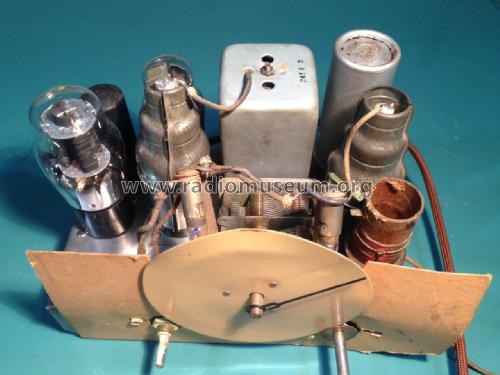

For model 161, Halson Radio Mfg. Co.; New York City (NY):
Picture courtesy of guest Kirk Laffman

Country:  United States of America (USA)
Manufacturer / Brand:  Halson Radio Mfg. Co.; New York City (NY)
Year: 1937 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6A7 6C6 25L6G 25Z5 L42D or L49D
Main principle Superheterodyne (common); ZF/IF 456 kHz; 1 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110-120 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 161 - Halson Radio Mfg. Co.; New
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 11 x 9 x 8 inch / 279 x 229 x 203 mm
Notes

The Halson 161 is an AC/DC operated 4 tube BC band receiver.  The BC band frequency tuning range is 545-1750 kHz. Uses ballast L42D or L49D.

Halson model 162 is similar to this model except it has a 6E5 tuning eye tube.

External source of data Ernst Erb
Literature/Schematics (1) Rider's Perpetual, Volume 8 = 1937 and before (Page 8-5)
