50-R

50-R ; Halson Radio Mfg. Co (ID = 2050881) Radio 50-R ; Halson Radio Mfg. Co (ID = 720889) Radio
50-R ; Halson Radio Mfg. Co (ID = 2050882) Radio 50-R ; Halson Radio Mfg. Co (ID = 2050883) Radio
50-R ; Halson Radio Mfg. Co (ID = 2050884) Radio 50-R ; Halson Radio Mfg. Co (ID = 2050885) Radio
Use red slider bar for more.
50-R ; Halson Radio Mfg. Co (ID = 2050881) Radio
Halson Radio Mfg. Co: 50-R [Radio] ID = 2050881 1400x1164
Select picture or schematic to display from thumbnails on the right and click for download.
For model 50-R, Halson Radio Mfg. Co.; New York City (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Halson Radio Mfg. Co.; New York City (NY)
Year: 1936 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6K7 75 43 25Z5 L42B
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 50-R - Halson Radio Mfg. Co.; New
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 300 x 280 x 18 mm / 11.8 x 11 x 0.7 inch
Notes

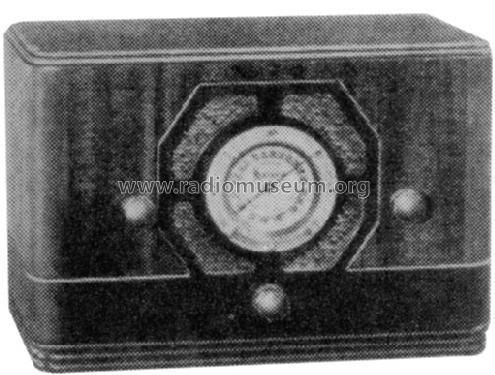

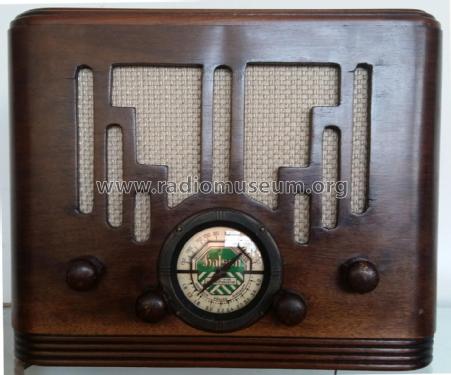

Center round airplane dial surrounded by octagonal grille, two tone wood.

Notice that the L42B (listed as a tube) is a ballast "tube".

In the absence of the original schematics of this model, one can use the diagram of the model 50-X, which is very similar, and employs the same tube complement.

Source of data Collector's Guide to Antique Radios (7th Edition)
Mentioned in Machine Age to Jet Age II

Model page created by Götz Linss. See "Data change" for further contributors.
