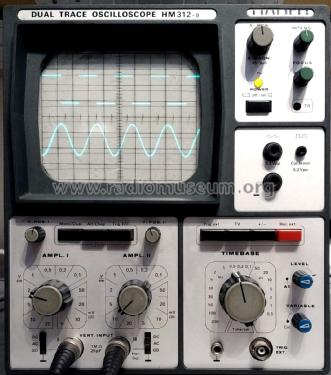

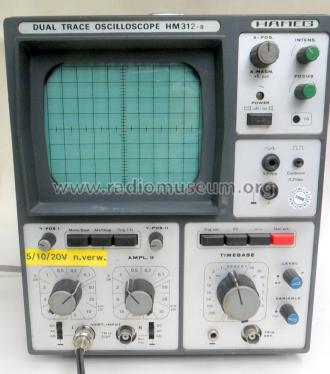

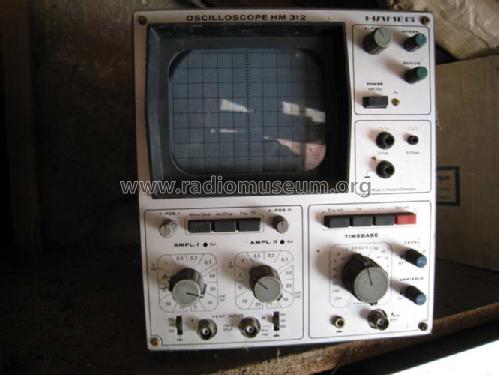

Oscilloscope HM 312-8

Oscilloscope HM 312-8; HAMEG GmbH, (ID = 681119) Equipment

Oscilloscope HM 312-8; HAMEG GmbH, (ID = 681121) Equipment

Oscilloscope HM 312-8; HAMEG GmbH, (ID = 681122) Equipment

Oscilloscope HM 312-8; HAMEG GmbH, (ID = 681123) Equipment

Oscilloscope HM 312-8; HAMEG GmbH, (ID = 681115) Equipment

Oscilloscope HM 312-8; HAMEG GmbH, (ID = 681116) Equipment

Oscilloscope HM 312-8; HAMEG GmbH, (ID = 681110) Equipment

Oscilloscope HM 312-8; HAMEG GmbH, (ID = 681111) Equipment

Oscilloscope HM 312-8; HAMEG GmbH, (ID = 681113) Equipment

Oscilloscope HM 312-8; HAMEG GmbH, (ID = 681114) Equipment
Oscilloscope HM 312-8; HAMEG GmbH, (ID = 2344272) Equipment Oscilloscope HM 312-8; HAMEG GmbH, (ID = 2003003) Equipment
Oscilloscope HM 312-8; HAMEG GmbH, (ID = 2003005) Equipment Oscilloscope HM 312-8; HAMEG GmbH, (ID = 447539) Equipment
Oscilloscope HM 312-8; HAMEG GmbH, (ID = 447541) Equipment Oscilloscope HM 312-8; HAMEG GmbH, (ID = 447540) Equipment
Oscilloscope HM 312-8; HAMEG GmbH, (ID = 447542) Equipment Oscilloscope HM 312-8; HAMEG GmbH, (ID = 447543) Equipment
Oscilloscope HM 312-8; HAMEG GmbH, (ID = 447544) Equipment Oscilloscope HM 312-8; HAMEG GmbH, (ID = 469140) Equipment
Use red slider bar for more.

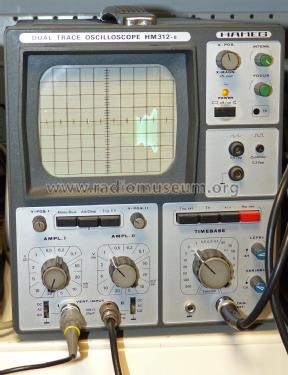

Oscilloscope HM 312-8; HAMEG GmbH, (ID = 2344272) Equipment
HAMEG GmbH,: Oscilloscope HM 312-8 [Equipment] ID = 2344272 1400x1818
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oscilloscope HM 312-8, HAMEG GmbH, Frankfurt:
Sammlung: "Das Rundfunkmuseum" in Cham

Country:  Germany
Manufacturer / Brand:  HAMEG GmbH, Frankfurt
Year: 1980 ? Category: Service- or Lab Equipment
Valves / Tubes 1: 130BXB31
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 237 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oscilloscope HM 312-8 - HAMEG GmbH, Frankfurt
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 212 x 237 x 380 mm / 8.3 x 9.3 x 15 inch
Notes Hameg Zweikanal-Oszilloskop HM312-8.
Frequenzbereich beider Y-Kanäle: 0-20 MHz, X-Kanal: 0-2 MHz. Triggerung bis 40 MHz. Eingebauter Rechteckgenerator 1 kHz.
Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Price in first year of sale 990.00 DM
Collectors' prices
Source of data - - Manufacturers Literature

Model page created by a member from D. See "Data change" for further contributors.
