General Coverage Receiver HQ-150

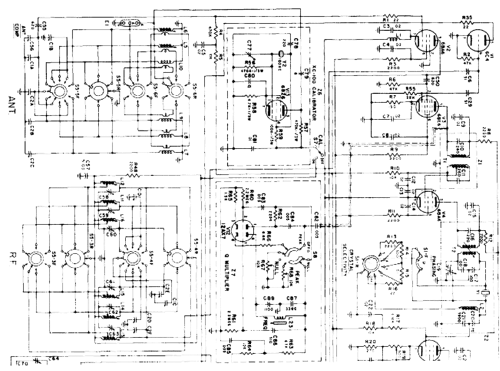

General Coverage Receiver HQ-150; Hammarlund Mfg. Co. (ID = 1423384) Amateur-R

General Coverage Receiver HQ-150; Hammarlund Mfg. Co. (ID = 1423385) Amateur-R
General Coverage Receiver HQ-150; Hammarlund Mfg. Co. (ID = 263593) Amateur-R General Coverage Receiver HQ-150; Hammarlund Mfg. Co. (ID = 1017869) Amateur-R
Use red slider bar for more.
General Coverage Receiver HQ-150; Hammarlund Mfg. Co. (ID = 263593) Amateur-R
Hammarlund Mfg. Co.: General Coverage Receiver HQ-150 [Amateur-R] ID = 263593 933x577
Select picture or schematic to display from thumbnails on the right and click for download.
For model General Coverage Receiver HQ-150, Hammarlund Mfg. Co. Inc.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Hammarlund Mfg. Co. Inc.; New York, NY
Year: 1955 ? Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Valves / Tubes 12: 6BA6 6BE6 6C4 6BA6 6BA6 6BA6 6AL5 12AX7 6V6GT 5U4GB 12AX7 6BZ6 0C3
Main principle Superhet with RF-stage
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 105 - 120 Volt
Loudspeaker - This model requires external speaker(s).
Power out 2 W (unknown quality)
from Radiomuseum.org Model: General Coverage Receiver HQ-150 - Hammarlund Mfg. Co. Inc.; New
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 20.12 x 11 x 13.5 inch / 511 x 279 x 343 mm
Notes Single conversion, Coverage 540 - 31000 kHz in six ranges. S-Meter, BFO, Noise-limiter, Bandspread 80 - 10 Meters HAM-Bands, Calibrator, etc. The HQ-150 features a ¼" Head. Jack • S Meter • Q-Multiplier • Antenna Trimmer • RF Gain • ANL • AVC ON/MAN • Calibrator 100 kHz • BFO ±2 kHz. • Bandspread • Mute contacts • Speaker Terminals • Dial Lamp • Hinged Cover • Flywheel Tuning. The tubes have the following functions: 6BA6 RF Amp, 6BE6 Mixer, 6C4 HF Osc, 6BA6 1st IF Amp, 6BA6 2nd IF Amp, 6BA6 3rd IF Amp, 6AL5 Detector/AVC/NL, 12AX7 1st AF Amp/BFO, 6V6GT/G Audio Power Amp, 0C3 Voltage Regulator, 5U4GB Rectifier, 12AX7 Q-Multiplier and 6BZ6 Calibrator. We don't count the Voltage Regulator 0C3 as a tube. Requires a speaker. Ranges: .54-1.32, 1.32-3.2, 3.2-5.7, 5.7-10, 10-18 and 18-31 MHz. Bandspread 80 to 10 meters. The HQ-150 features a true Q-Multiplier with both peak and reject. It has a very flexible filter system. Two toned gray metal cabinet. The HQ-150, the HQ-150X were the last of the large single conversion Hammarlund general coverage receivers. The HQ-160 has double conversion.

Usually Hammarlund used the letter 'X' to designate a model which included a crystal calibrator, and the letter 'C' to describe models including a clock. The letter 'A' usually meant a significant circuit upgrade.
Net weight (2.2 lb = 1 kg) 31.7 kg / 69 lb 13.2 oz (69.824 lb)
Price in first year of sale 294.00 $
External source of data Ralf Sürtenich
Mentioned in Shortwave Receivers - Past & Present (3rd ed.)
Documents about this model
  Hammarlund HQ150 Instruction and Service Manual (supplied by guest Russ Edmunds) 2063 KB

Model page created by Ralf Sürtenich. See "Data change" for further contributors.
