HQ-One Eighty HQ-180
Hammarlund Mfg. Co. Inc.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hammarlund Mfg. Co. Inc.; New York, NY
- Year
- 1959–1962
- Category
- Amateur-Receiver (amateur bands, may include broadcast bands)
- Radiomuseum.org ID
- 69055
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes

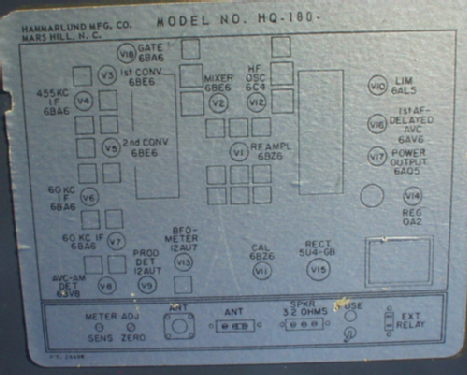

- 6BZ6 6BE6 6BE6 6BA6 6BE6 6BA6 6BA6 6BV8 12AU7 6AL5 6BZ6 6C4 12AU7 5U4GB 6AV6 6AQ5 6BA6
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 115; 230 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: HQ-One Eighty HQ-180 - Hammarlund Mfg. Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 19 x 10.5 x 13 inch / 483 x 267 x 330 mm
- Notes
-
Triple conversion, Double conversion below 7850 kc. Coverage 540 - 30000 kc. S-Meter, BFO, Noise-limiter, Bandspread, Calibrator, etc.
C-Version includes a clock. Note that the clock was also available as a retrofit so the label may not list "C".
E-Version (Export) includes 115 and 230 VAC options. The non-export models are 115 VAC only.
- Net weight (2.2 lb = 1 kg)
- 17.2 kg / 37 lb 14.2 oz (37.885 lb)
- Price in first year of sale
- 429.00 USD
- External source of data
- Ralf Sürtenich
- Mentioned in
- Shortwave Receivers - Past & Present (3rd ed.)
- Other Models
-
Here you find 145 models, 93 with images and 58 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Hammarlund Mfg. Co. Inc.; New York, NY
Collections
The model HQ-One Eighty is part of the collections of the following members.
Forum contributions about this model: Hammarlund Mfg. Co.: HQ-One Eighty HQ-180
Threads: 1 | Posts: 1
Le HQ180 utilise une 5U4 qui demande 3A pour le filament, la remplacer par une GZ32 ou GZ34 qui ne demande que 2A.Le transfo d'alim chauffe moins ,car il beaucoup sollicité.
De plus la GZ32 est à chauffage indirect et la ht vient moins brutalement.
Olivier.
Olivier Palix, 02.May.25
