Award Stereo Festival TA-7000X
Harman Kardon; New York
- Country
- United States of America (USA)
- Manufacturer / Brand
- Harman Kardon; New York
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 205553
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6AQ8 6BL8 6AJ8 6BL8 6EQ7 6BN6 6AV6 6BL8 12AX7 12AX7 12AX7 7199 7199 7591 7591 7591 7591
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 70 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

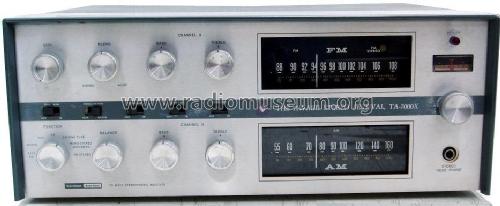

- Model: Award Stereo Festival TA-7000X - Harman Kardon; New York
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 410 x 160 x 340 mm / 16.1 x 6.3 x 13.4 inch
- Notes
- Harman Kardon TA-7000X AM/FM Stereo Tube Receiver. Top End of the Harman Kardon "Award Series". 35 watts per channel RMS into 8 ohms. Freq. Response: ± 1 db 12-70.000Hz a 1 watt. FM section sensivity: 0,9uv for 20db of quieting, 3,2 microvolts IHFM (usable sensivity).
- Net weight (2.2 lb = 1 kg)
- 37.8 lb (37 lb 12.8 oz) / 17.161 kg
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by Víctor Caselli-Diaconescu. See "Data change" for further contributors.
