• Country
• United States of America (USA)

• Manufacturer / Brand
• Harman Kardon; New York

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 163966

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• 6CW4 ECC85 ECF80 6AU6 6AU6 6BN6 6BN6 12AX7 12AX7 6CA4 12AX7 6BL8 12AT7

• Main principle
• Superhet with RF-stage

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

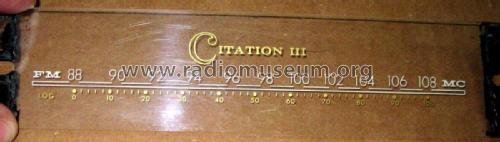

• Model: Citation III - Harman Kardon; New York

• Shape
• Chassis only or for «building in»

• Notes
• Stereo Tuner, companion to Citation I preamp.

• Mentioned in
• Photofact Folder, Howard W. SAMS

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
