For model Isolavi 10, Hartmann & Braun AG; Frankfurt

Country:  Germany
Manufacturer / Brand:  Hartmann & Braun AG; Frankfurt
Brand

Elima
Year: 1973 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 2: AD148 or. BD140 AD148 or. BD140 BYY37 BYY37 AAZ15 AAZ15
Wave bands - without
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Isolavi 10 - Hartmann & Braun AG; Frankfurt
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).

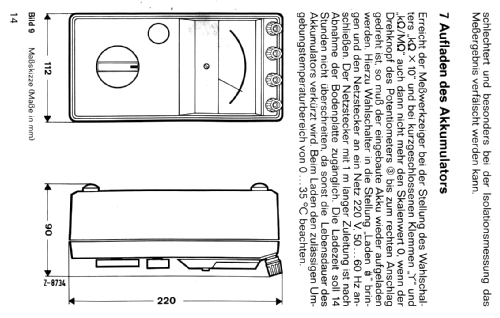

Dimensions (WHD) 112 x 90 x 220 mm / 4.4 x 3.5 x 8.7 inch

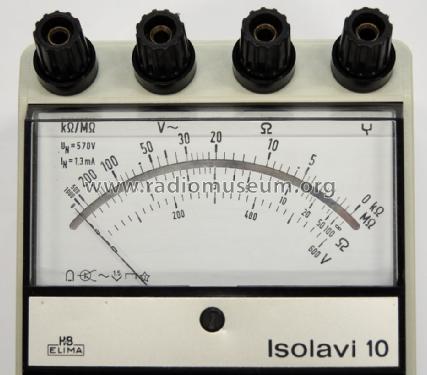

Notes Vielfach-Messinstrument zur Bestimmung von Isolationswiderständen und Wechselspannungen.
Spannungsquelle: NC-Akku 6,5 V, Ladegerät eingebaut.
Prüfspannung 3000 V.

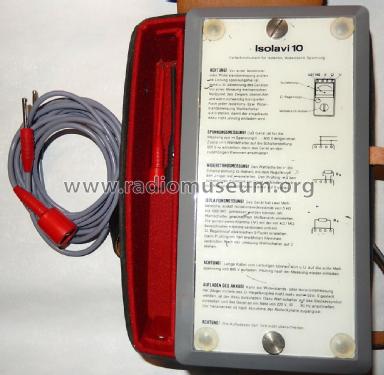

Zubehör: Bereitschaftstasche, Kabelgarnitur.
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Price in first year of sale 383.00 DM
Source of data -- Original prospect or advert
Mentioned in -- Original-techn. papers.

Model page created by Geert Schulte. See "Data change" for further contributors.
