For model Monavi M, Hartmann & Braun AG; Frankfurt:
By courtesy of Jim Willimas, Fairmont, WV, USA.

Country:  Germany
Manufacturer / Brand:  Hartmann & Braun AG; Frankfurt
Brand

Elima
Year: 1937 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Monavi M - Hartmann & Braun AG; Frankfurt
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 80 x 40 x 90 mm / 3.1 x 1.6 x 3.5 inch

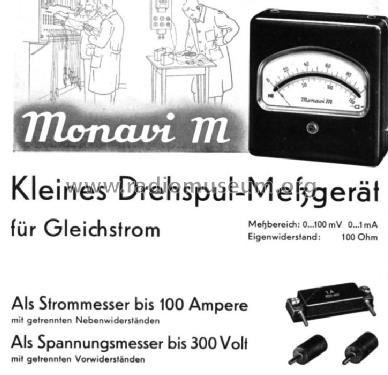

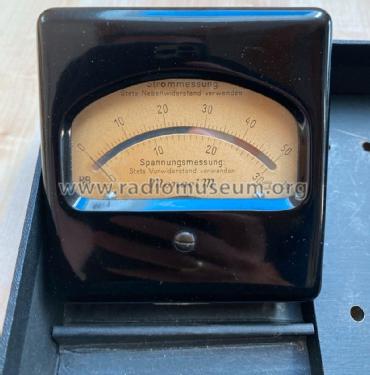

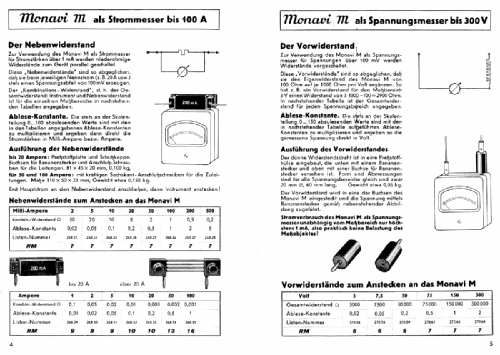

Notes Drehspul-Messgerät mit Spiegelskala für Gleichstrom, durch Vorwiderstände bis 300 V und Shunts bis 100 A erweiterbar.
Grundmodell für andere Modelle: V- Wechselspannung 150/450 V; G- Galvanometer; O1- Leitungsprüfer; O2- Widerstandsmesser 0-100 kOhm/10 MOhm.
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Price in first year of sale 29.00 RM
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original-techn. papers.

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
