Monavi O2 (O II)

Monavi O2 ; Hartmann & Braun AG; (ID = 1039467) Equipment

Monavi O2 ; Hartmann & Braun AG; (ID = 1039468) Equipment

Monavi O2 ; Hartmann & Braun AG; (ID = 1039469) Equipment

Monavi O2 ; Hartmann & Braun AG; (ID = 1039470) Equipment

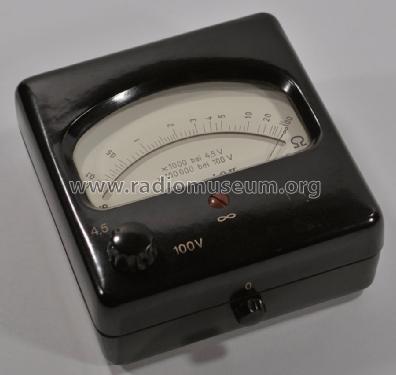

Monavi O2 ; Hartmann & Braun AG; (ID = 1145796) Equipment Monavi O2 ; Hartmann & Braun AG; (ID = 1613595) Equipment
Monavi O2 ; Hartmann & Braun AG; (ID = 1613596) Equipment Monavi O2 ; Hartmann & Braun AG; (ID = 1613597) Equipment
Monavi O2 ; Hartmann & Braun AG; (ID = 1613598) Equipment Monavi O2 ; Hartmann & Braun AG; (ID = 1039466) Equipment
Use red slider bar for more.
Monavi O2 ; Hartmann & Braun AG; (ID = 1145796) Equipment
Hartmann & Braun AG;: Monavi O2 [Equipment] ID = 1145796 850x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Monavi O2 (O II), Hartmann & Braun AG; Frankfurt:
Hartmann & Braun Monavi 0II

Country:  Germany
Manufacturer / Brand:  Hartmann & Braun AG; Frankfurt
Brand

Elima
Year: 1935 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries / 4,5; 100 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Monavi O2 - Hartmann & Braun AG; Frankfurt
Material Bakelite case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 90 x 40 x 100 mm / 3.5 x 1.6 x 3.9 inch
Notes Kleiner Widerstandsmesser, 2 Messbereiche:
0-100 kOhm (4,5 V) und
0- 10 MOhm (100 V),
Drehspulmesswerk mit Spiegelskala. Nullpunkt durch magnetischen Nebenschluss einstellbar.
Source of data - - Manufacturers Literature

Model page created by a member from D. See "Data change" for further contributors.
