For model Multavi 5 ohne Messverstärker, Hartmann & Braun AG; Frankfurt:

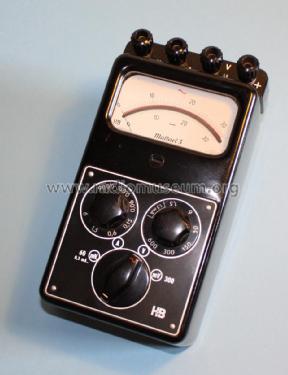

Vista en perspectiva frente

Country:  Germany
Manufacturer / Brand:  Hartmann & Braun AG; Frankfurt
Brand

Elima
Year: 1955 Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Multavi 5 [ohne Messverstärker] - Hartmann & Braun AG; Frankfurt
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 105 x 70 x 185 mm / 4.1 x 2.8 x 7.3 inch
Notes Strom- und Spannungsmesser mit 32 Messbereichen:
U DC/AC: 600/300/150/30/6/1,5V/0,3V
U DC: 60 mV
I AC/DC: 6/1,5/0,6/0,15/0,06/0,015/0,006/1,5mA
I DC: 0,3 mA
Besonderheit: Strom- und Spannungszweig können gleichzeitig angeschlossen werden. Einfache Umschaltung zwischen Strom- und Spannungsmessung.
Genauigkeit: DC 1 %, AC 1,5 %.
Eingebauter Wandler für den Zweiweg-Gleichrichter.
Net weight (2.2 lb = 1 kg) 0.9 kg / 1 lb 15.7 oz (1.982 lb)
Price in first year of sale 200.00 DM
Collectors' prices
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) Handbuch RFP 1955/56

Model page created by Jörg Kirchhof. See "Data change" for further contributors.
