Pontavi-Thomson ; Hartmann & Braun AG; (ID = 517190) Equipment

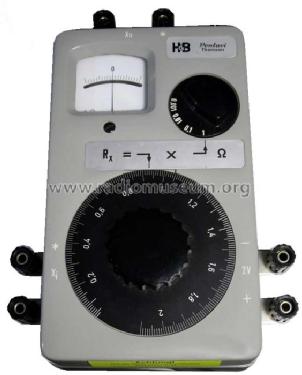

Hartmann & Braun AG;: Pontavi-Thomson [Equipment] ID = 517190 565x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pontavi-Thomson, Hartmann & Braun AG; Frankfurt

Country:  Germany
Manufacturer / Brand:  Hartmann & Braun AG; Frankfurt
Brand

Elima
Year: 1938 ? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit. / 2 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Pontavi-Thomson - Hartmann & Braun AG; Frankfurt
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 153 x 65 x 200 mm / 6 x 2.6 x 7.9 inch
Notes

Thomson-Widerstands-Messbrücke mit 4 Messbereichen: 0,0002 bis 2,1 Ohm.
Externes Netzteil 2 V/3,2 A ist erforderlich.

Bekannt sind folgende Ausführungen:

GA 686 - 1938
B 19-5 - 1951
EB 19-5 - 1955

(Quelle: unterschiedliche Ausgaben von Bedienungsanleitungen für " Pontavi-Thomson ")

Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)

Model page created by Bernd Pötzsch. See "Data change" for further contributors.
