Crystal Microphone Preamplifier CMA-50
Harvey Radio Labs., Harvey - Wells; Brookline, Southbridge, MA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Harvey Radio Labs., Harvey - Wells; Brookline, Southbridge, MA
- Year
- 1949 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 360559

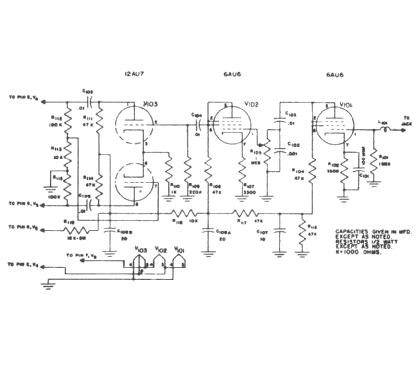

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Crystal Microphone Preamplifier CMA-50 - Harvey Radio Labs., Harvey -
- Shape
- Chassis only or for «building in»
- Notes
-
External CMA-50 Crystal Microphone Preamplifier for use with Harvey-Wells Bandmaster transmitters that do not have an internal microphone preamplifier.
- Price in first year of sale
- 22.00 USD
- Mentioned in

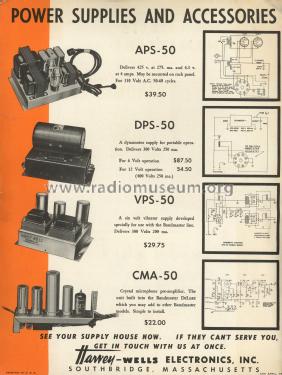

- - - Manufacturers Literature (Harvey Wells flyer. April 1950)
- Author
- Model page created by David Erali. See "Data change" for further contributors.
