Fixed Station Speaker FS-1
Harvey Radio Labs., Harvey - Wells; Brookline, Southbridge, MA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Harvey Radio Labs., Harvey - Wells; Brookline, Southbridge, MA
- Year
- 1955 ?
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 360516
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Metal case
- from Radiomuseum.org
- Model: Fixed Station Speaker FS-1 - Harvey Radio Labs., Harvey -
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 12.375 x 8 x 6.25 inch / 314 x 203 x 159 mm
- Notes
-

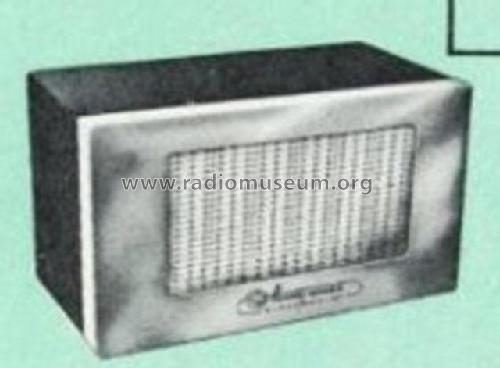

FS-1 Fixed Station Speaker for use with the T-90 transmitter, and R9 and R9-A receivers. Eliptical speaker dimensions are 6 x 9 inches.
- Price in first year of sale
- 10.50 USD
- Mentioned in

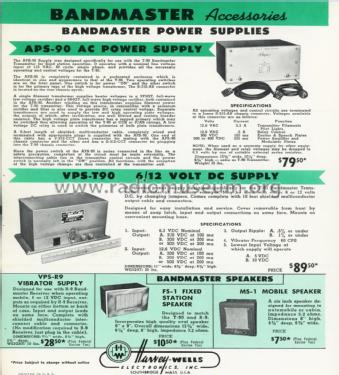

- -- Original prospect or advert (QST magazine, July 1955. page 95)
- Author
- Model page created by David Erali. See "Data change" for further contributors.
