• Country
• Austria

• Manufacturer / Brand
• HEA; Wien

• Year
• 1970

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 111082

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• BC148 BC148 AC175 AC117

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2.9 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

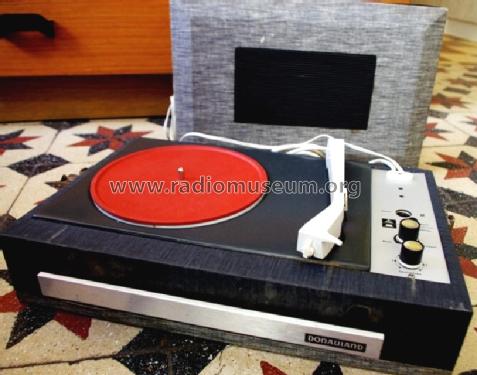

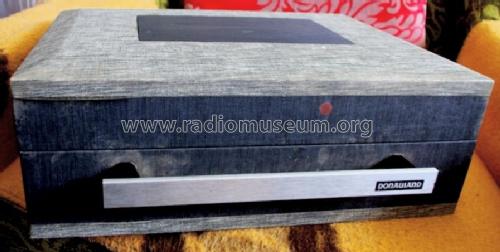

• Model: Donauland VL2000 - HEA; Wien

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 390 x 130 x 250 mm / 15.4 x 5.1 x 9.8 inch

• Notes

• Speed 16-33-45.  Phono chassis Lenco L 640.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
