Exquisit N

Exquisit N ; HEA; Wien (ID = 73736) Radio

Exquisit N ; HEA; Wien (ID = 726935) Radio
Exquisit N ; HEA; Wien (ID = 40271) Radio Exquisit N ; HEA; Wien (ID = 140697) Radio
Exquisit N ; HEA; Wien (ID = 140695) Radio Exquisit N ; HEA; Wien (ID = 140696) Radio
Exquisit N ; HEA; Wien (ID = 998189) Radio Exquisit N ; HEA; Wien (ID = 998190) Radio
Exquisit N ; HEA; Wien (ID = 1003333) Radio Exquisit N ; HEA; Wien (ID = 1003334) Radio
Exquisit N ; HEA; Wien (ID = 1834395) Radio Exquisit N ; HEA; Wien (ID = 1834774) Radio
Use red slider bar for more.
Exquisit N ; HEA; Wien (ID = 40271) Radio
HEA; Wien: Exquisit N [Radio] ID = 40271 711x485
Select picture or schematic to display from thumbnails on the right and click for download.
For model Exquisit N, HEA; Wien:

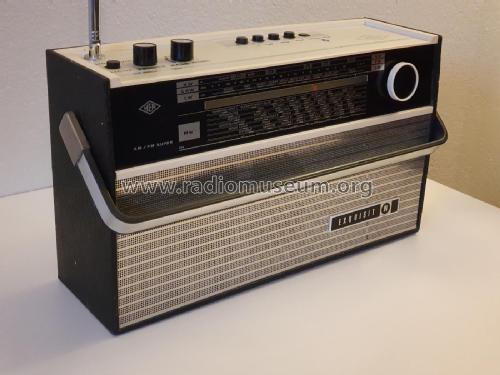

HEA Exquisit im Holzgehäuse

Country:  Austria
Manufacturer / Brand:  HEA; Wien
Year: 1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: BF167 BF195 BF194 BF194 BF194 BC149 BC149 AC187 or. AC175 AC188 or. AC117 AC127 or. AC187
Main principle Superheterodyne (common); ZF/IF 461/10700 kHz; 4 AF stage(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 5 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Exquisit N - HEA; Wien
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 345 x 200 x 105 mm / 13.6 x 7.9 x 4.1 inch
Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

Model page created by Gerhard Heigl. See "Data change" for further contributors.



All listed radios etc. from HEA; Wien
Here you find 195 models, 140 with images and 158 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
HEA; Wien: Exquisit N
Threads: 1 | Posts: 1
Hits: 1761     Replies: 0
hea: HEA Exquisit N
Gerhard Heigl
27.Apr.03
  1 ZF 461kHz/ 10,7MHz; Gewicht: 3,8kg; Gehäuse Holz, BHT: 350x210x105mm.
