• Country
• Austria

• Manufacturer / Brand
• HEA; Wien

• Year
• 1967/1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 156416

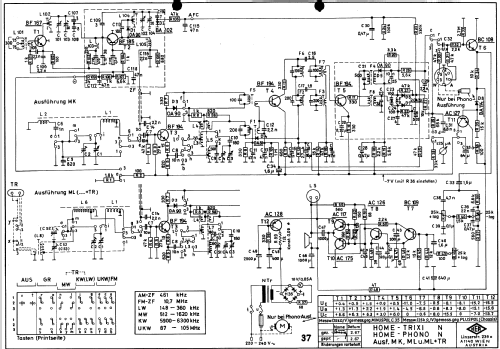

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• BF167 BF185 BF194 BF194 BF194 BF194 BC108 AC127 BC109 AC126 AC117 AC175 AC128

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 220V Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Home Trixi N - Phono - HEA; Wien

• Shape
• Tablemodel with Push Buttons.

• Notes
• Plattenspieler ist von Lenco.

• Author
• Model page created by Hermann Schagerl. See "Data change" for further contributors.
