Orbit ; HEA; Wien (ID = 678778) Radio

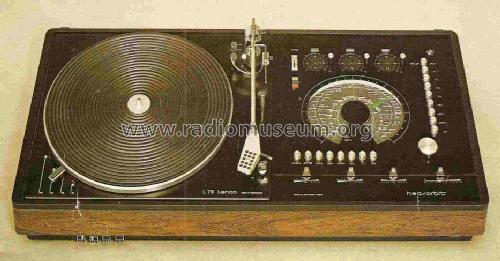

HEA; Wien: Orbit [Radio] ID = 678778 933x488
Select picture or schematic to display from thumbnails on the right and click for download.
For model Orbit, HEA; Wien:
Prospektbild

Country:  Austria
Manufacturer / Brand:  HEA; Wien
Year: 1974/1975 Category: Broadcast Receiver - or past WW2 Tuner
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker
Power out 80 W (130 W max.)
from Radiomuseum.org Model: Orbit - HEA; Wien
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 740 x 175 x 350 mm / 29.1 x 6.9 x 13.8 inch
Notes

Transistoren und IC, 4 Stationstasten , geteilter Mittelwellenbereich MW I (1051 bis 1620 kHz) und MW II (512 bis 1051 kHz), eingebautes Plattenspielerlaufwerk Lenco L78.

Dieses Gerät wurde auch für die Firma Minerva hergestellt, mit der Bezeichnung "Commander 3000 HiFi".

Net weight (2.2 lb = 1 kg) 17.5 kg / 38 lb 8.7 oz (38.546 lb)
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

Model page created by Gerhard Heigl. See "Data change" for further contributors.
