Super Jacky

Super Jacky ; HEA; Wien (ID = 14178) Radio
Super Jacky ; HEA; Wien (ID = 14179) Radio Super Jacky ; HEA; Wien (ID = 123892) Radio
Super Jacky ; HEA; Wien (ID = 123893) Radio Super Jacky ; HEA; Wien (ID = 123894) Radio
Super Jacky ; HEA; Wien (ID = 123895) Radio Super Jacky ; HEA; Wien (ID = 570511) Radio
Super Jacky ; HEA; Wien (ID = 688397) Radio Super Jacky ; HEA; Wien (ID = 688398) Radio
Super Jacky ; HEA; Wien (ID = 688399) Radio Super Jacky ; HEA; Wien (ID = 688400) Radio
Use red slider bar for more.
Super Jacky ; HEA; Wien (ID = 14179) Radio

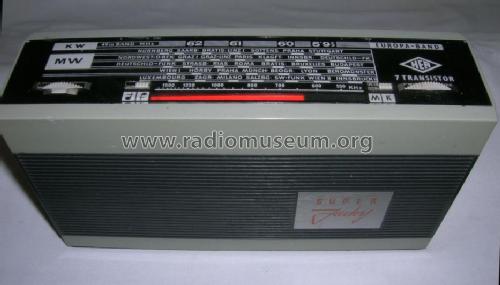

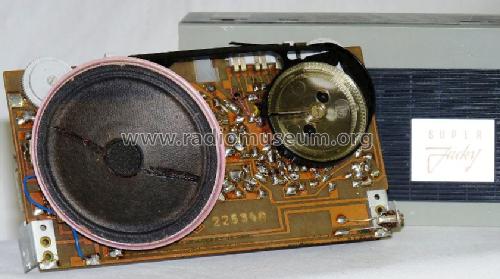

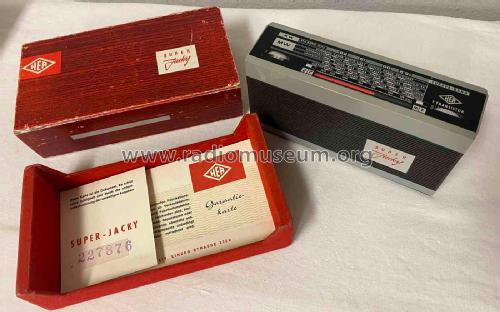

HEA; Wien: Super Jacky [Radio] ID = 14179 533x317
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super Jacky, HEA; Wien:
HEA Superjacky

Country:  Austria
Manufacturer / Brand:  HEA; Wien
Year: 1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF127 AF127 AF127 AC125 AC125 AC127 AC132 OA90 BA114
Main principle Superheterodyne (common); ZF/IF 461 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Dry Batteries / 2 x 3 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: Super Jacky - HEA; Wien
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 160 x 86 x 44 mm / 6.3 x 3.4 x 1.7 inch
Notes 2 Ausführungen: KW / MW oder MW / LW.
Net weight (2.2 lb = 1 kg) 0.360 kg / 0 lb 12.7 oz (0.793 lb)
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
Mentioned in RADIOBOTE, Österr. (Heft 57/2015, S.13 ff, Gerätebeschreibung)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Gerhard Heigl. See "Data change" for further contributors.



All listed radios etc. from HEA; Wien
Here you find 195 models, 140 with images and 158 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
