Tribun MW/LW

Tribun MW/LW; HEA; Wien (ID = 180446) Car Radio
Tribun MW/LW; HEA; Wien (ID = 926102) Car Radio Tribun MW/LW; HEA; Wien (ID = 926096) Car Radio
Tribun MW/LW; HEA; Wien (ID = 926095) Car Radio Tribun MW/LW; HEA; Wien (ID = 926097) Car Radio
Tribun MW/LW; HEA; Wien (ID = 926098) Car Radio Tribun MW/LW; HEA; Wien (ID = 926099) Car Radio

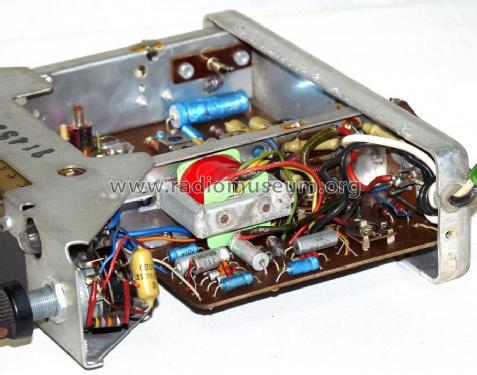

Tribun MW/LW; HEA; Wien (ID = 926100) Car Radio Tribun MW/LW; HEA; Wien (ID = 926101) Car Radio
Use red slider bar for more.
Tribun MW/LW; HEA; Wien (ID = 926102) Car Radio
HEA; Wien: Tribun MW/LW [Car Radio] ID = 926102 933x470
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tribun MW/LW, HEA; Wien

Country:  Austria
Manufacturer / Brand:  HEA; Wien
Year: 1963/1964 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 7: AF116 AF116 AF117 AF117 AC126 OC74 OC26
Main principle Superheterodyne (common); ZF/IF 461 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Tribun MW/LW - HEA; Wien
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 172 x 55 x 150 mm / 6.8 x 2.2 x 5.9 inch
Notes Plus/Minus Gehäuse umschaltbar.
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Price in first year of sale 1'380.00 ATS
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
