• Country
• Austria

• Manufacturer / Brand
• HEA; Wien

• Year
• 1972/1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73832

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• BF273 BF195 BF273 AC127 AC132 TBA120 TBA570

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 2× 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

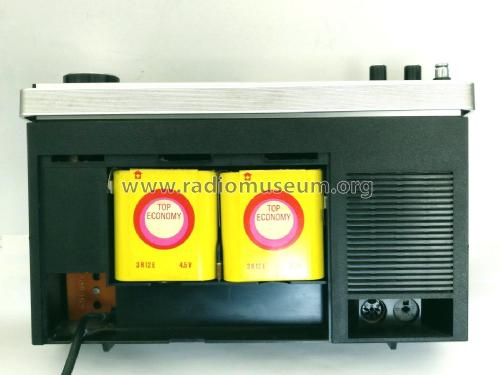

• Model: Trixi 1500 IC - HEA; Wien

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 255 x 159 x 69 mm / 10 x 6.3 x 2.7 inch

• Notes
• Halbleiter sind ohne Suffix angeführt.

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.

• Other Models

• Here you find 195 models, 138 with images and 157 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from HEA; Wien
