• Country
• Australia

• Manufacturer / Brand
• Healing, A.G., Ltd.; Melbourne

• Year
• 1957

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 236604

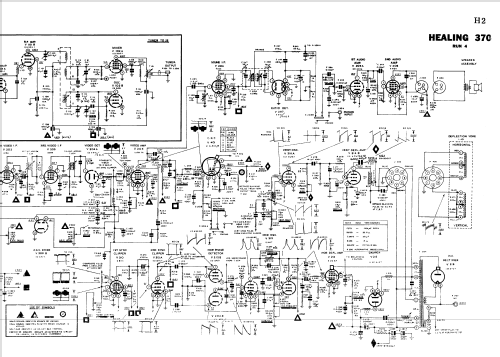

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• 30L1 or 6BQ7A 30C1 or 6U8 6CB6 or 6F12 6CB6 or 6F12 6CB6 or 6F12 6AL5 or 6D2 12BY7A 6AU6 or 6F12 6AL5 or 6D2 6AV6 6AQ5 6BE6 12AU7 6CM7 12AU7 6DQ6A 6AX4GT 1B3GT 5AS4 5AS4 21ALP4A or 21ALP4B

• Main principle
• Superhet with RF-stage; ZF/IF 36000/30500 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 200; 230; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Capitol 370/21CC - Healing, A.G., Ltd.; Melbourne

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• This 21 inch B&W television tuned the 10 Australian VHF channels standard at the time.

  Most alternative valves shown in the tube list are not interchangeable on the same chassis. V201, 202, 203 & 206 are 6F12 (near equiv 6AM6/EF91) are used in the first chassis run. Subsequent chassis runs type 6CB6 are used.

  Tuner TD25: 30L1 (7AN7) & 30C1 (9U8). Tuner TD26: 6BQ7A & 6U8.

  Wooden cabinet on castors.

  Cabinet finishes in Walnut, Maple & Mahogany.

• Price in first year of sale
• 251.00 AUS £

• Literature/Schematics (1)
• - - Manufacturers Literature (Healing Service Data for TV Receiver 370, August 1957.)

• Literature/Schematics (2)
• J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1962 & 1967, Page H2.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
