Nevada 825-25CL Ch= 825
Healing, A.G., Ltd.; Melbourne
- Country
- Australia
- Manufacturer / Brand
- Healing, A.G., Ltd.; Melbourne
- Year
- 1965
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 291102

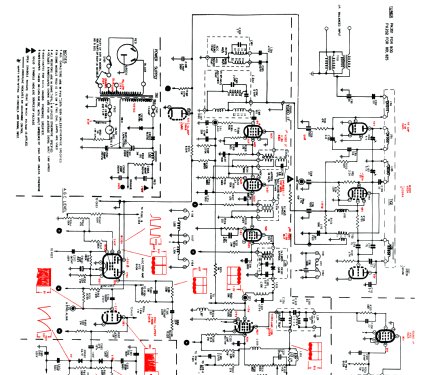

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 36875/31375 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 230-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Nevada 825-25CL Ch= 825 - Healing, A.G., Ltd.; Melbourne
- Shape
- Console with any shape - in general
- Notes
-
This 25 inch B&W television tuned the 13 standard Australian TV channels.
- Price in first year of sale
- 418.00 AUS $
- Literature/Schematics (1)

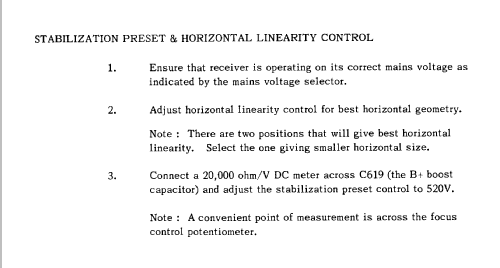

- - - Manufacturers Literature (Service Data for Healing Television Receivers 800, 801 & 825, 1st Edition, August 1965.)
- Literature/Schematics (2)
- J.R. Publications Television Service Handbook (Group 7-17, Feb 1966, Page H16.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
