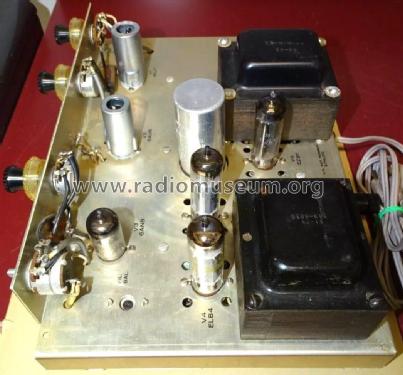

HiFi Amplifier AA-13E

Heathkit (Brand), Heath Co.; Benton Harbor (MI)

Data
Forum
Pictures
Collections

  • Year
  • 1965 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 97379
    • alternative name: Heath Company

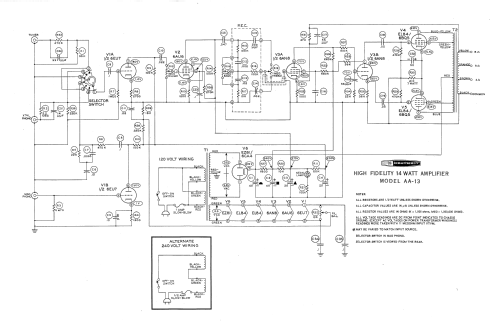

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • 115; 230 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 14 W (16 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org

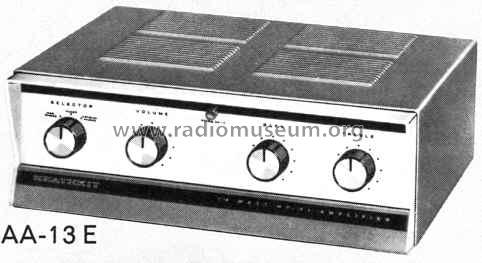

  • Model: HiFi Amplifier AA-13E - Heathkit Brand, Heath Co.;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 13.5 x 4.94 x 10.5 inch / 343 x 125 x 267 mm
  • Notes

  • Integrated amplifier, mono.  Volume control without loudness compensation.

    Inputs: Magnetic pickup, crystal pickup, tuner. Equalization: RIAA. Outputs: 4-8-16 ohms.

    Model AA-13E is the 230V European version.

    See also the earlier model Heath AA-161.

  • Net weight (2.2 lb = 1 kg)
  • 7 kg / 15 lb 6.7 oz (15.419 lb)
  • Price in first year of sale
  • 29.95 USD
  • Mentioned in
  • -- Schematic (March 1965 Heathkit catalog, page 27)
  • Author
  • Model page created by Trev Levick. See "Data change" for further contributors.
