Laboratory Signal Generator IG-42E

Laboratory Signal Generator IG-42E; Heathkit Brand, (ID = 523537) Equipment
Laboratory Signal Generator IG-42E; Heathkit Brand, (ID = 534983) Equipment Laboratory Signal Generator IG-42E; Heathkit Brand, (ID = 534990) Equipment
Laboratory Signal Generator IG-42E; Heathkit Brand, (ID = 534984) Equipment Laboratory Signal Generator IG-42E; Heathkit Brand, (ID = 534986) Equipment
Laboratory Signal Generator IG-42E; Heathkit Brand, (ID = 97470) Equipment Laboratory Signal Generator IG-42E; Heathkit Brand, (ID = 294086) Equipment
Laboratory Signal Generator IG-42E; Heathkit Brand, (ID = 534987) Equipment Laboratory Signal Generator IG-42E; Heathkit Brand, (ID = 534988) Equipment
Laboratory Signal Generator IG-42E; Heathkit Brand, (ID = 1088035) Equipment Laboratory Signal Generator IG-42E; Heathkit Brand, (ID = 1418003) Equipment
Use red slider bar for more.
Laboratory Signal Generator IG-42E; Heathkit Brand, (ID = 534983) Equipment

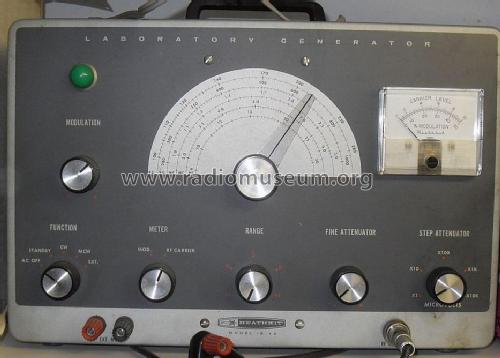

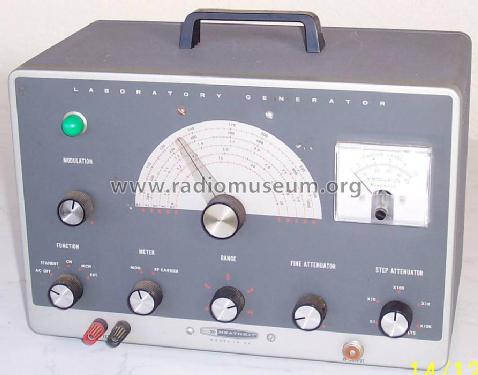

Heathkit Brand,: Laboratory Signal Generator IG-42E [Equipment] ID = 534983 893x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Laboratory Signal Generator IG-42E, Heathkit (Brand), Heath Co.; Benton Harbor (MI):
G.L.

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1968 Category: Service- or Lab Equipment
Valves / Tubes 3: 6AF4 6AV5 12AU7 0B2
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Laboratory Signal Generator IG-42E - Heathkit Brand, Heath Co.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 330 x 203 x 178 mm / 13 x 8 x 7 inch
Notes Selenium rectifier. Five ranges: 100-290 kHz, 280-1000 kHz, 0.95-3.1 MHz, 2.9-9.5 MHz, 9-31 MHz. Also sold in kit-form. Kit DM 359.-
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 375.00 DM
Collectors' prices

Model page created by Georges Van Campenhout. See "Data change" for further contributors.



All listed radios etc. from Heathkit (Brand), Heath Co.; Benton Harbor (MI)
Here you find 660 models, 639 with images and 474 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
