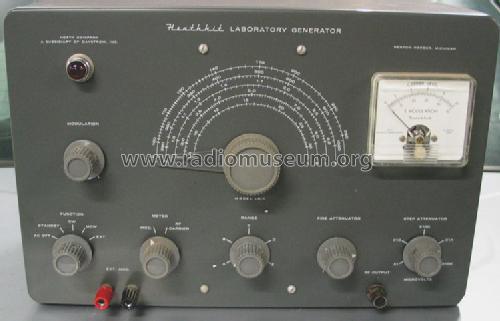

Laboratory Generator LG-1

Laboratory Generator LG-1; Heathkit Brand, (ID = 125251) Equipment
Laboratory Generator LG-1; Heathkit Brand, (ID = 317727) Equipment Laboratory Generator LG-1; Heathkit Brand, (ID = 161191) Equipment
Laboratory Generator LG-1; Heathkit Brand, (ID = 345772) Equipment Laboratory Generator LG-1; Heathkit Brand, (ID = 345773) Equipment
Laboratory Generator LG-1; Heathkit Brand, (ID = 946925) Equipment Laboratory Generator LG-1; Heathkit Brand, (ID = 946926) Equipment

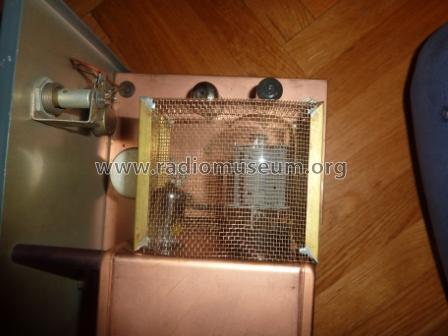

Laboratory Generator LG-1; Heathkit Brand, (ID = 946927) Equipment
Use red slider bar for more.

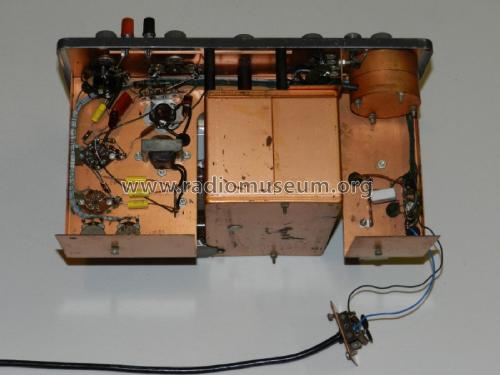

Laboratory Generator LG-1; Heathkit Brand, (ID = 317727) Equipment
Heathkit Brand,: Laboratory Generator LG-1 [Equipment] ID = 317727 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Laboratory Generator LG-1, Heathkit (Brand), Heath Co.; Benton Harbor (MI)

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1955–1960 ? Category: Service- or Lab Equipment
Valves / Tubes 3: 6AF4 6AV5 12AU7 0B2
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110 or 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Laboratory Generator LG-1 - Heathkit Brand, Heath Co.;
Material Metal case
Dimensions (WHD) 330 x 215 x 180 mm / 13 x 8.5 x 7.1 inch
Notes HF generator 100 kHz - 31 MHz, modulated / unmodulated.

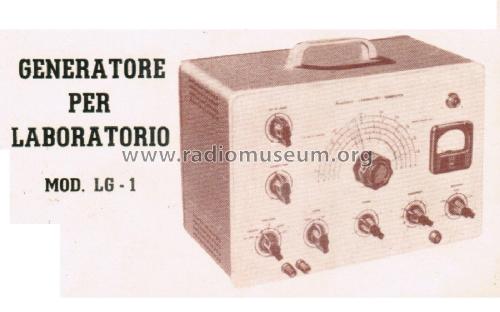

Mentioned in Funk-Technik (FT) (12/1960, S. 446 / Werbeanzeige)

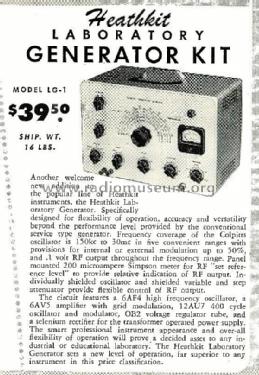

Literature/Schematics (1) Radio Revue 1955

Model page created by Hugo Sneyers. See "Data change" for further contributors.
