• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1960

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 164747

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 12AX7 12AX7 6AU6 6AU6 6AN8 6AN8 EL84 EL84 EL84 EL84 GZ34

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 36 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

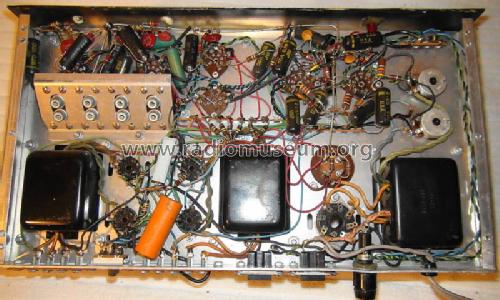

• Model: Stereo-Amplifier SA-2 - Heathkit Brand, Heath Co.;

• Shape
• Book-shelf unit.

• Notes

• Integrated Amplifier, stereo;  Volume control without Loudness compensation.

  See also the kit Daystrom DA-282.

• Net weight (2.2 lb = 1 kg)
• 23 lb (23 lb 0 oz) / 10.442 kg

• Price in first year of sale
• 54.95 USD

• Literature/Schematics (1)
• -- Schematic

• Literature/Schematics (2)
• - - Manufacturers Literature (Heathkit Catalog, March 1960, page 9 "NEW...SA-2")

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
