For model HF Transceiver SB-100, Heathkit (Brand), Heath Co.; Benton Harbor (MI)

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1965–1967 Category: Amateur Transmitter/Receiver (and Transceiver)
Valves / Tubes 20: 6AU6 6BN8 6CB6 6CL6 6EA8 6EA8 6EA8 6EA8 6GW8 12AT7 12AT7 12AU7 6146 6146 0A2

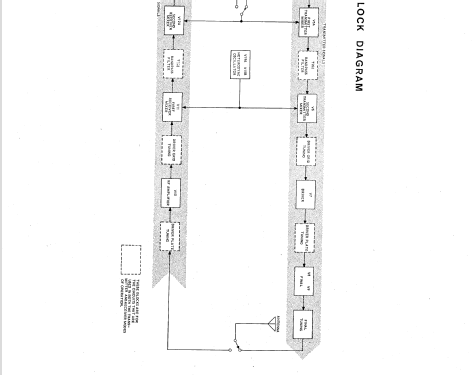

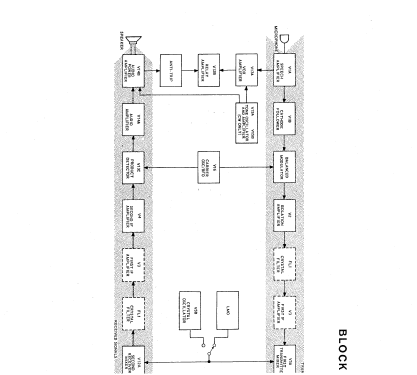

Main principle Superhet with RF-stage; ZF/IF 3395 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - This model requires external speaker(s).
Power out 2 W (unknown quality)
from Radiomuseum.org Model: HF Transceiver SB-100 - Heathkit Brand, Heath Co.;
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 378 x 170 x 340 mm / 14.9 x 6.7 x 13.4 inch
Notes 7 tubes 6AU6.

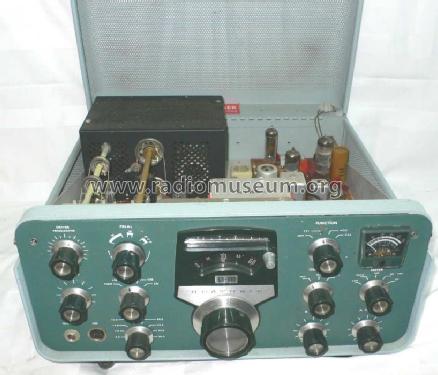

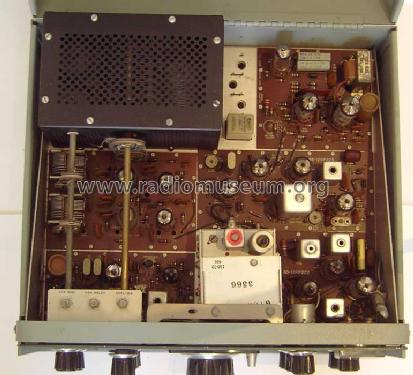

Heathkit HF-Transceiver SB-100.

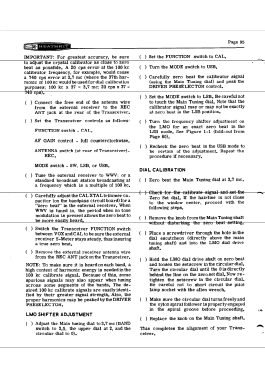

Double-conversion, SSB/CW, on xtal IF filter in second IF 3395 kHz, eight 500 kHz HAM-Bands between 3.5 and 29.5 MHz. Approx. 100 watts output. Mainly sold in kit-form. Needs power-supply HP-23.
Net weight (2.2 lb = 1 kg) 10.5 kg / 23 lb 2 oz (23.128 lb)
Price in first year of sale 360.00 USD
Collectors' prices
Source of data Heathkit: A Guide to Amateur Radio Products
