Ladegleichrichter TG 220
Use red slider bar for more.

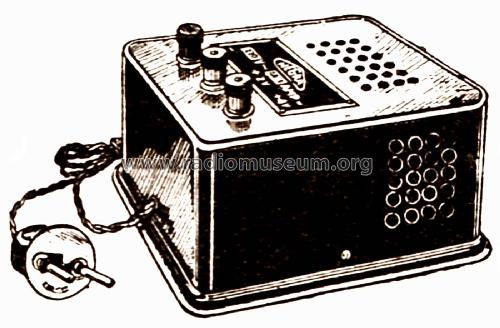

Hegra, Hekra, Marke,: Ladegleichrichter TG 220 [Power-S] ID = 1887282 1400x919
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1929–1931 | Category: Power supply/conditioner or battery or charger | ||||
| Semiconductors (the count is only for transistors) | Tr.Gl.=Metal-rectif. |
|---|
| Wave bands | - without |
|---|---|
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 210-230 Volt |
| Loudspeaker | - - No sound reproduction output. |
| Power out | |
| from Radiomuseum.org | Model: Ladegleichrichter TG 220 - Hegra, Hekra, Marke, Hermann |
| Material | Metal case |
| Shape | Tablemodel, with any shape - general. |
| Notes | Zum Laden von Heizakkus von 2, 4 oder 6 V, sowie für die Erregung von elektro-dynamischen Lautsprechern. Mit Kupferoxyd-Trockengleichrichter, Ladestromstärke ca. 1 A. |
| Price in first year of sale | 30.00 RM |
| Mentioned in | A. Stark, Preisliste 1929 |
| Literature/Schematics (1) | Kahle & Cless, Leipzig, Katalog 1931 |
Model page created by a member from D. See "Data change" for further contributors.
