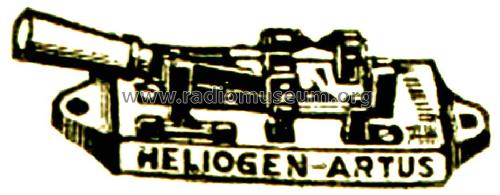

Artus - Antennen-Erdungsschalter 10024

Heliogen, Hermann Pawlik; Bad Blankenburg (GINOR)

  • Year
  • 1928
  • Category
  • Radio module post 1925 (not a part, not a key)
  • Radiomuseum.org ID
  • 113107

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: Artus - Antennen-Erdungsschalter 10024 - Heliogen, Hermann Pawlik; Bad
  • Dimensions (WHD)
  • 144 x 46 x 14 mm / 5.7 x 1.8 x 0.6 inch
  • Notes
  • Antennen-Blitzschutzschalter mit 3-A-Sicherung und Funkenstrecke.

    Auch in Porzellan-Ausführung als 10024P.

  • Net weight (2.2 lb = 1 kg)
  • 0.070 kg / 0 lb 2.5 oz (0.154 lb)
  • Price in first year of sale
  • 2.40 RM
  • Mentioned in
  • Heliogen Hauptkatalog RZ90, 1932
