• Country
• Germany

• Manufacturer / Brand
• Heliogen, Hermann Pawlik; Bad Blankenburg (GINOR)

• Year
• 1938 ?

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 79750

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• RF-Circuit or wave trap (separate, can also be an antenna with amp.)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite case

• from Radiomuseum.org

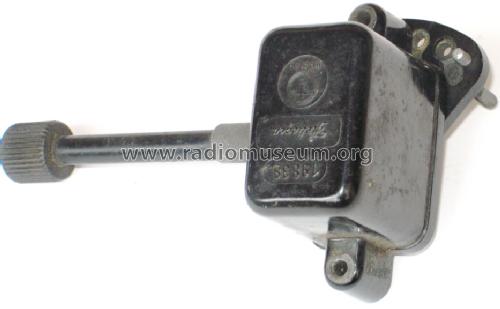

• Model: Sperrkreis 19838 - Heliogen, Hermann Pawlik; Bad

• Dimensions (WHD)
• 130 x 75 x 70 mm / 5.1 x 3 x 2.8 inch

• Notes
• Zubehör für DKE 1938, VE301Wn oder VE301dyn. Umschaltung der 3 Antennen-Anschlüsse und Sperrkreis MW mit seitlicher Bedienung. - Für LW Nr. 19839.

• Price in first year of sale
• 4.00 RM

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
