• Country
• Germany

• Manufacturer / Brand
• Hellige, Fritz; Freiburg i.Br.

• Year
• 1957

• Category
• Medical Technology

• Radiomuseum.org ID
• 370951

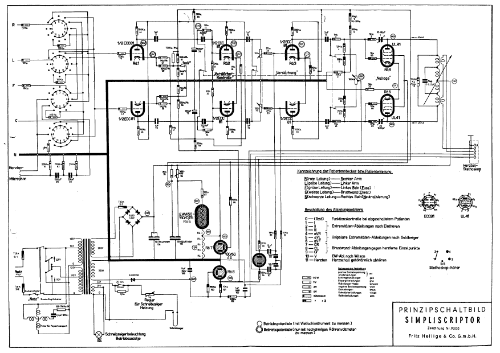

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC81 ECC81 ECC81 UL41 UL41 EWW50-150/0,115 STV100/60ZII STV100/60ZII

• Number of Transistors

• Semiconductors
• B250C200 E220C50

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Simpliscriptor 9300 - Hellige, Fritz; Freiburg i.Br.

• Shape
• Tablemodel, slant panel.

• Dimensions (WHD)
• 385 x 180 x 385 mm / 15.2 x 7.1 x 15.2 inch

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Price in first year of sale
• 1,500.00 DM

• Author
• Model page created by Elmar Gerhardinger. See "Data change" for further contributors.
