For model 2/37, Helvar (Suomen Koneliike); Helsinki

Country:  Finland
Manufacturer / Brand:  Helvar (Suomen Koneliike); Helsinki
alternative name

Arma, Helsinki
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner

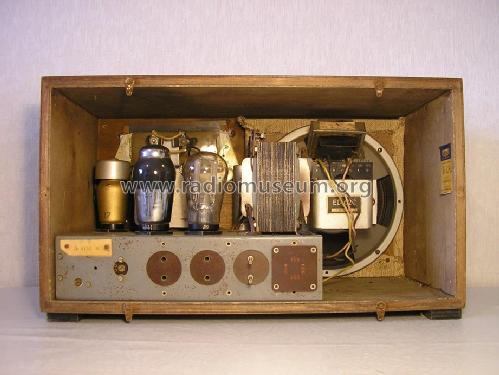

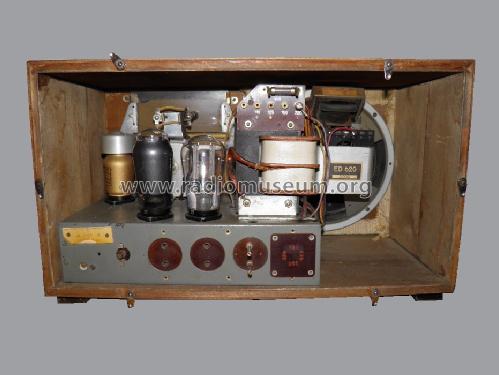

Valves / Tubes 3: AF7 AL4 AZ1
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 250 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet. / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: 2/37 - Helvar Suomen Koneliike;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 460 x 265 x 235 mm / 18.1 x 10.4 x 9.3 inch
Notes Helvar 2/37 has Gram. input.
Net weight (2.2 lb = 1 kg) 9.8 kg / 21 lb 9.4 oz (21.586 lb)
Source of data - - Data from my own collection

Model page created by Jari Aalto. See "Data change" for further contributors.
